Ultra-Compact AC/DC Programmable Power Supply
PCR-WEA/WEA2 Series
PCR-WEA-WEA2-series
$5.760,00 – $127.200,00

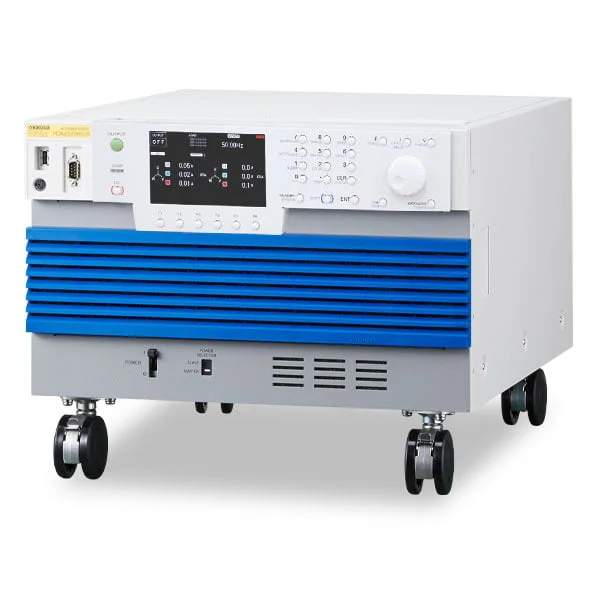

- Compact size: 6 kVA in 6U (PCR6000WEA2/PCR6000WEA2R)
- Up to 36 kVA in a single unit
- 100% Regenerative-power capability (Only “R” models (PCR-WEA2R) with 3-phase 200 V input. Regeneration on premises only.)
- Mix-and-match parallel operation up to 144 kVA
- Flexible digital interface: LAN (LXI), USB, RS232C, GPIB (Option)
- Sequence function for advanced simulation
- Power-saving function
- DC output: +/-, 100% of rated power
- Output frequency up to 5 kHz
- Output rating: AC 0 to 320 Vrms, DC 0 to ±452 V
| Image | SKU | 入力：皮相電力（kVA以下） | 出力定格ACモード：電力容量 | Price | |
|---|---|---|---|---|---|

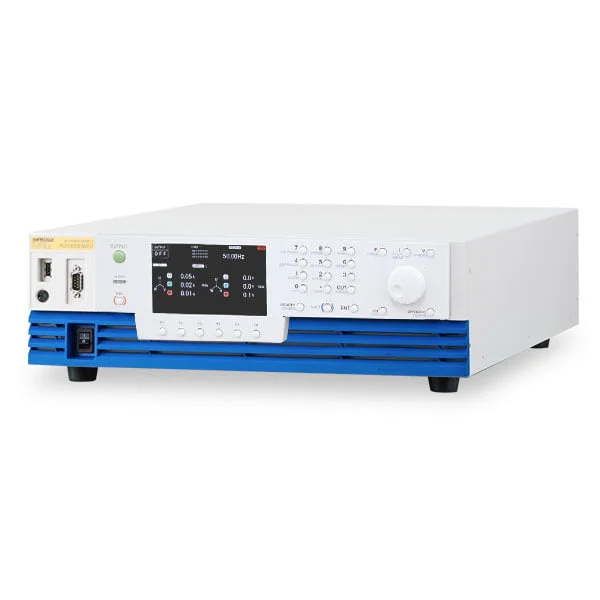

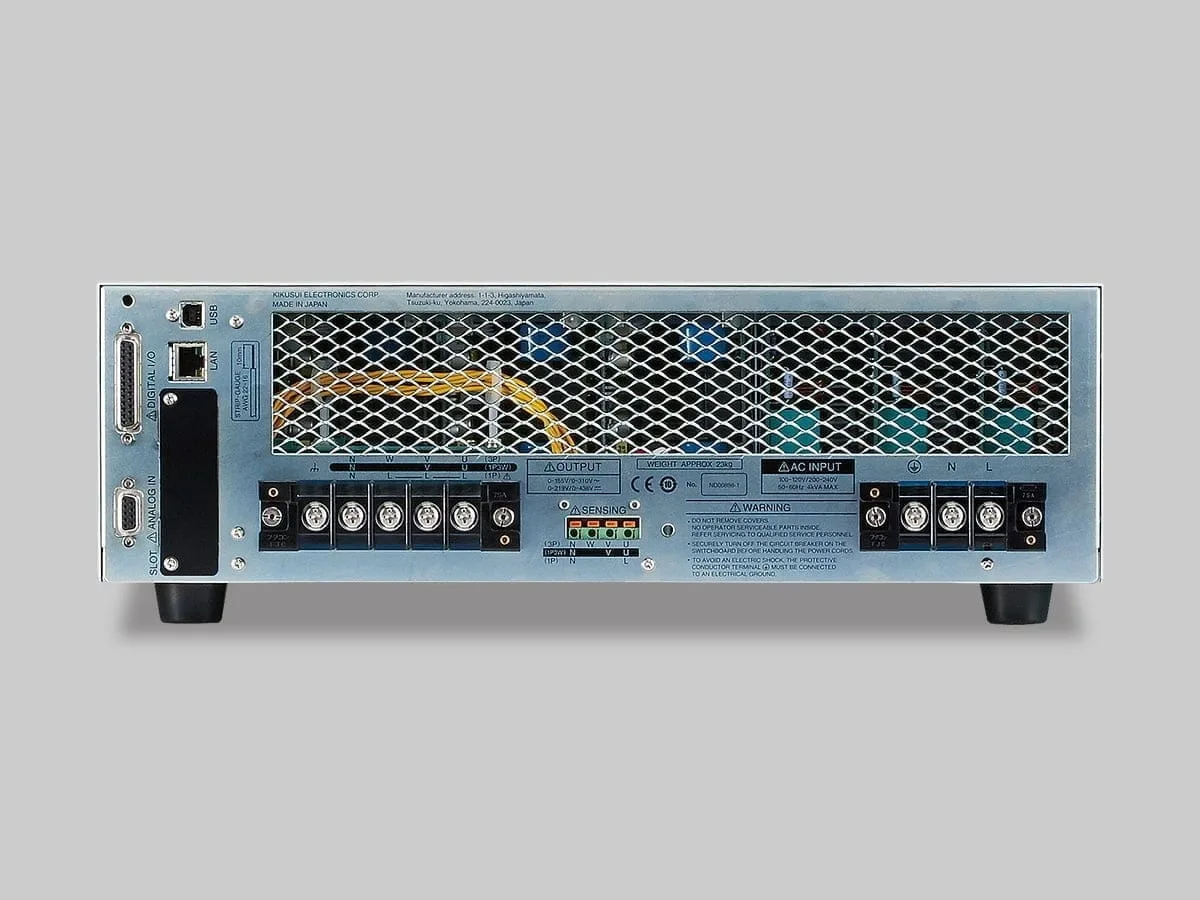

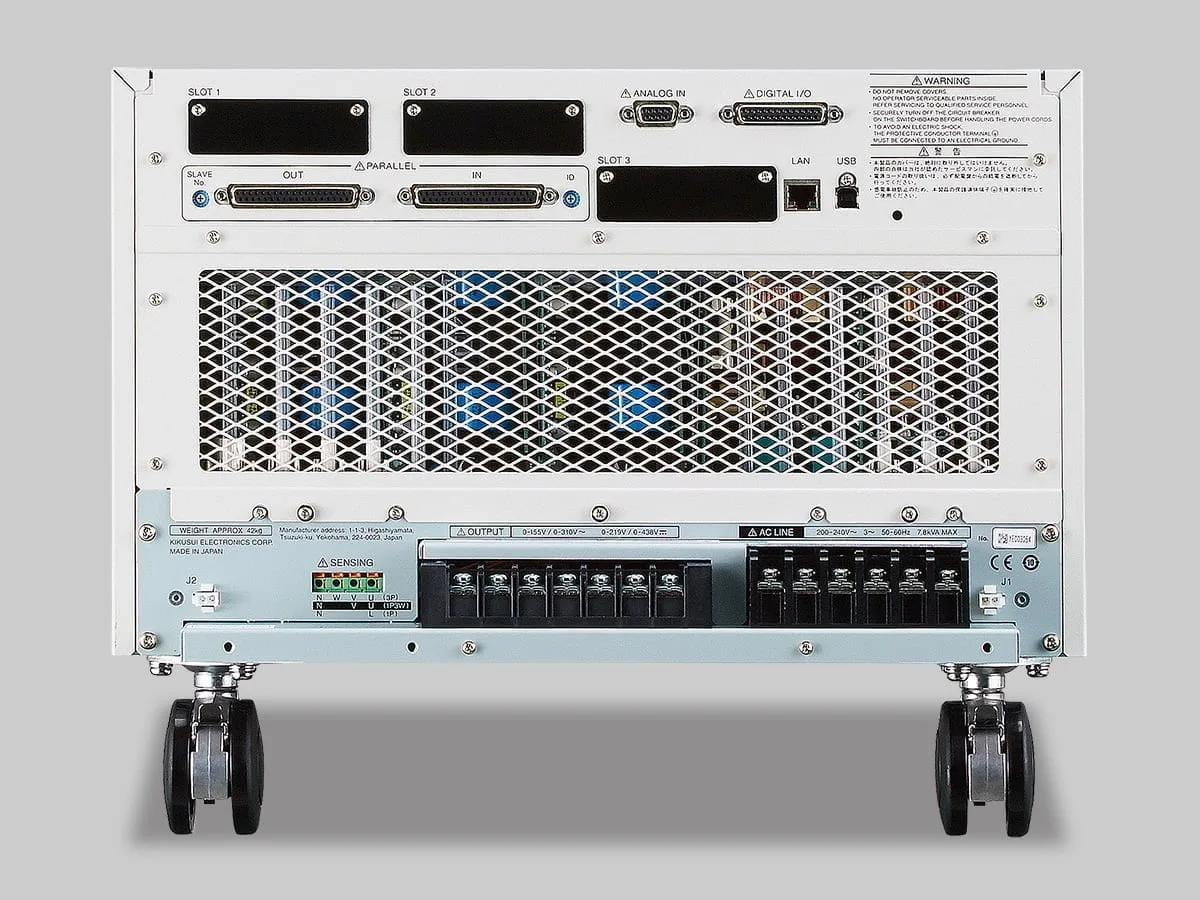

 | PCR1000WEA | 1.4 | 1kVA | - | $5.760,00 （税込：$6.336,00） |
| PCR2000WEA | 2.7 | 2kVA | - | $8.400,00 （税込：$9.240,00） |
| PCR3000WEA2 | 4 | 3kVA | - | $11.280,00 （税込：$12.408,00） |
 | PCR6000WEA2 | 7.8 | 6kVA | - | $23.200,00 （税込：$25.520,00） |

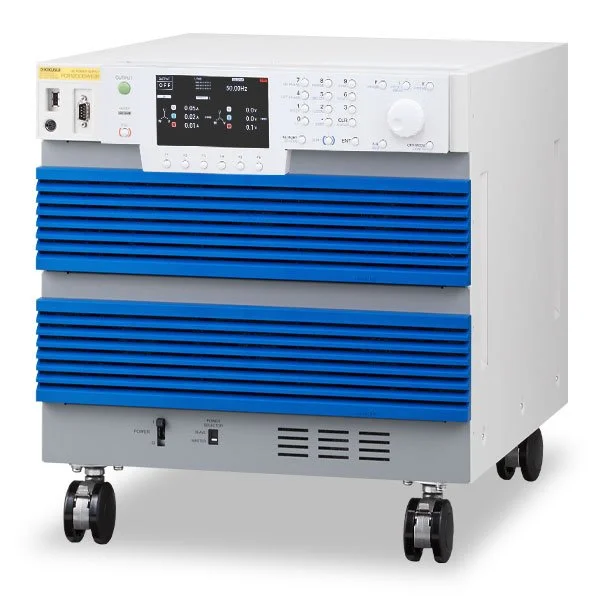

 | PCR12000WEA2 | 15.6 | 12kVA | - | $44.000,00 （税込：$48.400,00） |
 | PCR18000WEA2 | 23.4 | 18kVA | - | $64.800,00 （税込：$71.280,00） |

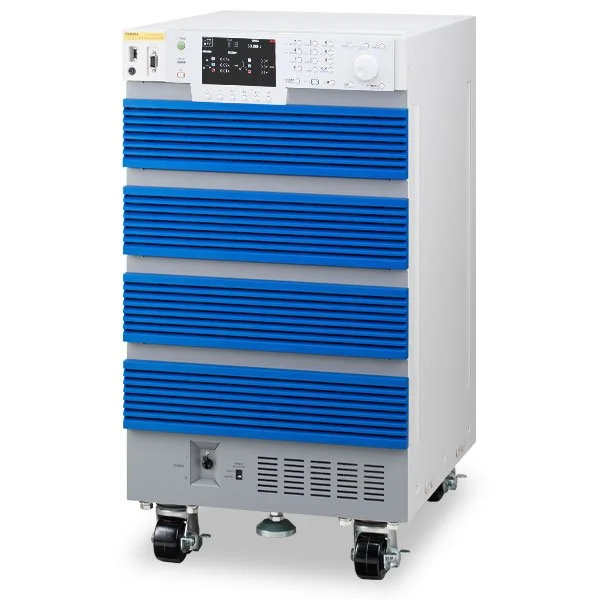

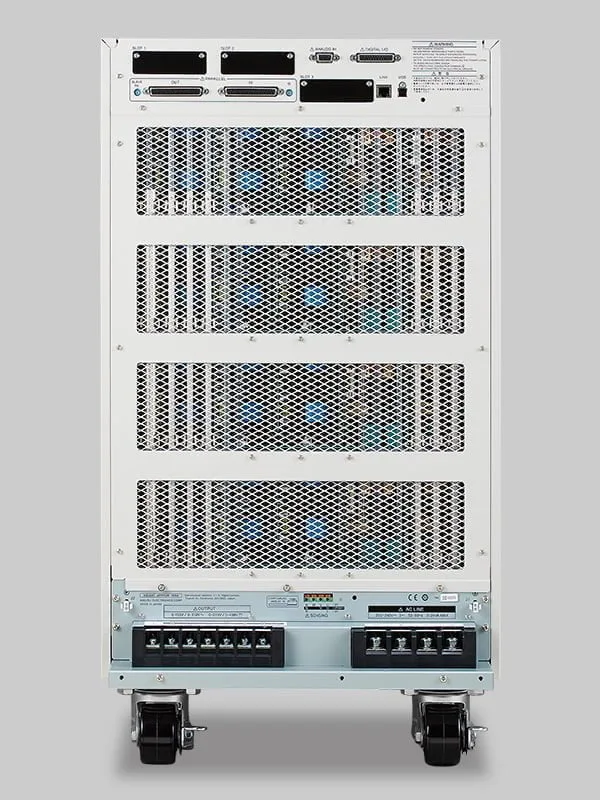

| PCR24000WEA2 | 31.2 | 24kVA | - | $85.600,00 （税込：$94.160,00） |
 | PCR30000WEA2 | 39 | 30kVA | - | $106.400,00 （税込：$117.040,00） |

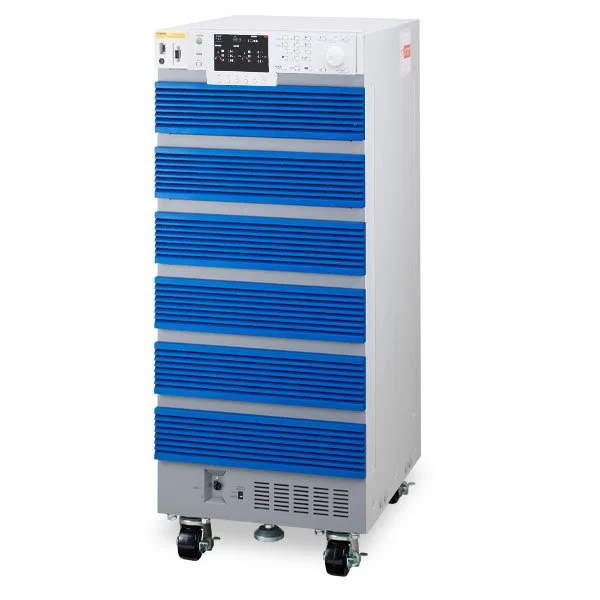

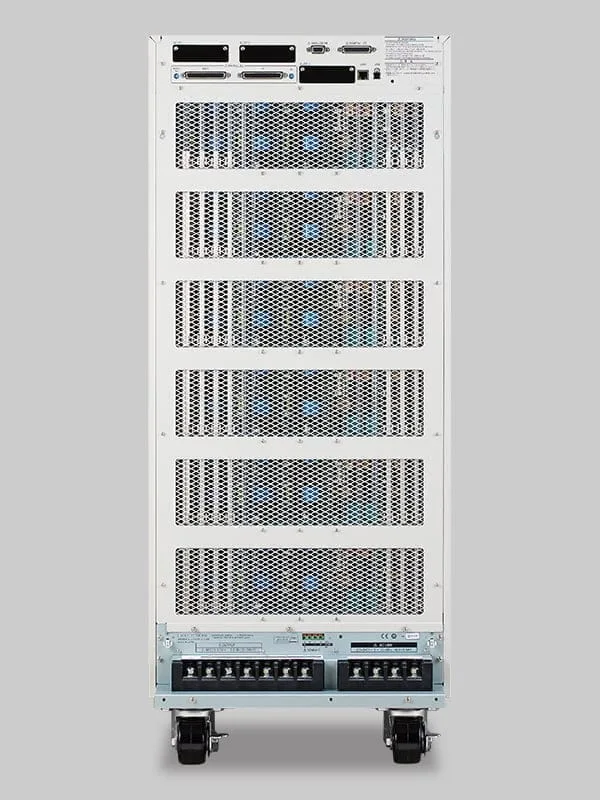

| PCR36000WEA2 | 46.8 | 36kVA | - | $127.200,00 （税込：$139.920,00） |
Line Ups
| Image | SKU | Price | Phase | Power capacity[VA] | Phase voltage[V] | Max.current(L/H range)[A]※1 | Frequency[Hz] |
|---|---|---|---|---|---|---|---|
 | PCR1000WEA | $5.760,00 （税込：$6.336,00） | Single-phase | 1k | (The spec guaranteed voltage range) 1 to 160/ 2 to 320 (L/H output range) (Voltage setting range) 0 to 161.0/ 0 to 322.0 | 10 / 5 | 1 to 5000 |
| PCR2000WEA | $8.400,00 （税込：$9.240,00） | Single-phase | 2k | 20 / 10 | ||
| PCR3000WEA2 | $11.280,00 （税込：$12.408,00） | Single-phase | 3K | 30 / 15 | ||
| Three-phase | 10 / 5 | ||||||
| Single-phase Three-wire | 2k | ||||||
 | PCR6000WEA2R PCR6000WEA2 | $23.200,00 （税込：$25.520,00） | Single-phase | 6k | 60 / 30 | ||
| Three-phase | 20 / 10 | ||||||
| Single-phase Three-wire | 4k | ||||||
 | PCR12000WEA2R PCR12000WEA2 | $44.000,00 （税込：$48.400,00） | Single-phase | 12k | 120 / 60 | ||
| Three-phase | 40 / 20 | ||||||
| Single-phase Three-wire | 8k | ||||||
 | PCR18000WEA2R PCR18000WEA2 | $64.800,00 （税込：$71.280,00） | Single-phase | 18k | 180 / 90 | ||
| Three-phase | 60 / 30 | ||||||
| Single-phase Three-wire | 12k | ||||||
| PCR24000WEA2R PCR24000WEA2 | $85.600,00 （税込：$94.160,00） | Single-phase | 24k | 240 / 120 | ||
| Three-phase | 80 / 40 | ||||||
| Single-phase Three-wire | 16k | ||||||
 | PCR30000WEA2R PCR30000WEA2 | $106.400,00 （税込：$117.040,00） | Single-phase | 30k | 300 / 150 | ||
| Three-phase | 100 / 50 | ||||||
| Single-phase Three-wire | 20k | ||||||
| PCR36000WEA2R PCR36000WEA2 | $127.200,00 （税込：$139.920,00） | Single-phase | 36k | 360 / 180 | ||
| Three-phase | 120 / 60 | ||||||
| Single-phase Three-wire | 24k | ||||||
| Image | SKU | Price | Power capacity[W] | Voltage[V] | Max.current(L/H range)[A]※1 |
|---|---|---|---|---|---|
| PCR1000WEA | $5.760,00 （税込：$6.336,00） | 1k | (The spec guaranteed voltage range) ±1.4 to ±226 / ±2.8 to ±452 (L/H output range) (Voltage setting range) -227.5 to +227.5 / -455.0 to +455.0 | 10 / 5 |
| PCR2000WEA | $8.400,00 （税込：$9.240,00） | 2k | 20 / 10 | |
| PCR3000WEA2 | $11.280,00 （税込：$12.408,00） | 3K | 30 / 15 | |
| PCR6000WEA2R PCR6000WEA2 | $23.200,00 （税込：$25.520,00） | 6k | 60 / 30 | |
| PCR12000WEA2R PCR12000WEA2 | $44.000,00 （税込：$48.400,00） | 12k | 120 / 60 | |
| PCR18000WEA2R PCR18000WEA2 | $64.800,00 （税込：$71.280,00） | 18k | 180 / 90 | |
| PCR24000WEA2R PCR24000WEA2 | $85.600,00 （税込：$94.160,00） | 24k | 240 / 120 | |
| PCR30000WEA2R PCR30000WEA2 | $106.400,00 （税込：$117.040,00） | 30k | 300 / 150 | |
| PCR36000WEA2R PCR36000WEA2 | $127.200,00 （税込：$139.920,00） | 36k | 360 / 180 | |
| Image | SKU | Price | Phase | Voltage (nominal)[V] | Apparent power[kVA or less] | Current[A or less] |
|---|---|---|---|---|---|---|
| PCR1000WEA | $5.760,00 （税込：$6.336,00） | Single-phase | 100 to 120, 200 to 240 | 1.4 | 17 / 8.5 |
| PCR2000WEA | $8.400,00 （税込：$9.240,00） | Single-phase | 100 to 120, 200 to 240 | 2.7 | 32 / 16 |
| PCR3000WEA2 | $11.280,00 （税込：$12.408,00） | Single-phase | 100 to 120, 200 to 240 | 4 | 48 / 24 |
| PCR6000WEA2 | $23.200,00 （税込：$25.520,00） | 3-phase 4-wire 400 V | Line voltage 380 to 480 | 7.8 | 14 |
| PCR12000WEA2 | $44.000,00 （税込：$48.400,00） | 3-phase 4-wire 400 V | Line voltage 380 to 480 | 15.6 | 28 |
| PCR18000WEA2 | $64.800,00 （税込：$71.280,00） | 3-phase 4-wire 400 V | Line voltage 380 to 480 | 23.4 | 42 |
| PCR24000WEA2 | $85.600,00 （税込：$94.160,00） | 3-phase 4-wire 400 V | Line voltage 380 to 480 | 31.2 | 56 |
| PCR30000WEA2 | $106.400,00 （税込：$117.040,00） | 3-phase 4-wire 400 V | Line voltage 380 to 480 | 39 | 70 |
| PCR36000WEA2 | $127.200,00 （税込：$139.920,00） | 3-phase 4-wire 400 V | Line voltage 380 to 480 | 46.8 | 84 |
