Compact AC Power SupplyPCR-MA Series

Wide-range, programable output voltage up to 310 Vrms with a user friendly interface designed for maximum practicality and convenience.

The PCR-MA AC power supply series is a PWM inverter type (switching) power supply that builds on the success of our conventional model, the PCR-M. Maximum output voltage has been increased to 310 Vrms AC while maintaining a compact, portable design. The digital interface now includes LAN (LXI) and USB as standard, with GPIB as a factory option for easy integration into any test system. The LXI compliant LAN interface allows the operator to easily monitor and control the instrument via virtual interface wherever they are. Various features including a remote sensing function have been introduced to ensure precise voltage and current measurements. Other features including DC mode, memory functions, and various protections make the PCR-MA the most accessible AC power supply on the market.

Features

Compact design

Neatly fits on your desk! Easy to carry with only one hand

Small enough to fit on your work desk! Only 214W × 124H × 350D mm! Weighs only 6.5kg and easy to carry!(PCR500MA)

6.5kg

Versatile output modes

In addition to “AC mode” and “DC mode”, an AC+DC external analog interface board option (EX08-PCR-MA) allows for output control via “EXT-AC mode” and “EXT-DC mode” through external analog signals.

Output ModeDescription
AC modeAC output
DC modeDC output
AC+DC modeSuperimpose DC voltage on the AC voltage and output *1
EXT-AC modeOutput sine waves using external DC signals*2
EXT-DC modeSimply amplify and output the waveform applied externally *2
  • *1 Only communication commands
  • *2 Only when the analog interface board (EX08-PCR-MA) is installed.

AC mode

The PCR-MA output voltage range can be set in two ranges (0-155V, 0-310V) with a programmable frequency up to 500 Hz in order to comply with nominal, single phase voltage anywhere in the world. This is especially useful for power supply systems found in aircraft, boats, and actuators.

Settable Voltage RangeFrequency Setting Range
155V range310V range
0.0V to 157.5V0.0V to 315.0V40Hz to 500Hz


DC mode

The output voltage can be varied from ±0V to 219V or ±0V to 438V

Output Voltage Setting
155V range310V range
-222.5V to +222.5V-445V to +445V


AC+DC mode

The output voltage can be varied from ±0V to 219V or ±0V to 438V

Output Voltage Setting
155V range310V range
-222.5V to +222.5 V-445V to +445V


* AC + DC mode is a function used to superimpose DC voltage on AC voltage or AC voltage on DC voltage. It can only be used with the communication commands.


Versatile measurement capability

THE PCR-MA is capable of measuring the voltage, current and power of AC and DC output. It can also display the true RMS and average (DC) values of the output voltage as well as the true RMS, peak, and average (DC) values for the output current. When used with digital interface, the PCR-MA can also measure apparent power (VA), reactive power (VAR), power factor (PF), and peak hold current.

Sensing function (ON/OFF)

The new remote sensing feature compensates for voltage drops along long load wires to ensure maximum accuracy.

Output-on phase angle

The output-on phase angle can be set in AC mode. The output-off phase angle is turned off at the zero-crossing phase.
Output-on phase angle

Memory function

The PCR-MA can store up to three sets of output voltage, frequency, and limit value setting via front panel. Additionally, when using communication commands, the internal memory can store up to 11 settings.
Memory function

Maximum peak current

Maximum peak current of up to three times the rated maximum current (rms value) can be output to a capacitor-input rectifier load. Maximum peak current = rated maximum current (rms) × 3.
a capacitor-input rectifier load

EXT-AC mode

The output AC voltage value can be varied according to the input DC signal.
Voltage amplification rate : 15.5 times or 31 times

EXT-DC mode

Amplifies the waveforms that it receives and outputs the result.
Voltage amplification rate : 100 times or 200 times

Protection features

The following protection features are available:

  • Protection against non-rated input voltage
  • Protection against overheating (OHP)
  • Protection against overloading: Current limit (OCP)/monitoring for exceeded power (OPP)/Monitoring for exceeded peak current (OCPP)
  • Detection of voltage abnormalities:Increased voltage (OVP)/decreased voltage (LVP)
  • Abnormal sensing cable connection detection (SF)

Easy remote control and monitoring from your Web browser!

Use a browser from a PC, smartphone, or tablet to access the web server built into the PCR-MA series for convenient control and monitoring.

[Recommended browser]
Requires for the Microsoft Edge 10 / Requires for the Internet Explorer version 9.0 or laterater / Requires for the Firefox 8.0 or laterater / Requires for the safari / mobile Safari 5.1 or later / Requires for the Chrome 15.0 or later / Requires for the Opera 11.0 or later
*Connecting with a smartphone, tablet, etc. requires a Wi-Fi environment (wireless LAN router etc.).

Easy remote control and monitoring from your Web browser!

Application examples

AC power supply for standby power measurement.

AC power supply for standby power measurement.

The PCR-MA can be used alongside the KPM1000 Digital Power Meter to conduct measurements compliant with IEC62301, 1st edition. You can also measure the “standby and off mode power” of household and office electronic equipment as required by standards such as Erp Directive Lot 6.

AC power supply for harmonic current measurement.

高調波電流測定用の交流電源として

When used with the KHA1000 Harmonic/Flicker Analyzer, the PCR-MA can be used to conduct harmonic measurements of power supplies compliant with IEC61000-3-2.

AC power supply for capacitator testing.

AC power supply for capacitator testing.

Combined with the Contact Checker, the PCR-MA can allow you to detect current flowing throw the capacitor, and verify whether it has been connected or not.

DC power supply for simple power supply variation tests.

DC power supply for simple power supply variation tests.

When used alongside our PBZ40-10 Bipolar Power Supply and PLZ164WH electronic load, the PCR-MA can help conduct simplified power variation tests for high voltage DC components found in automotive equipment.

Product line-up

Options

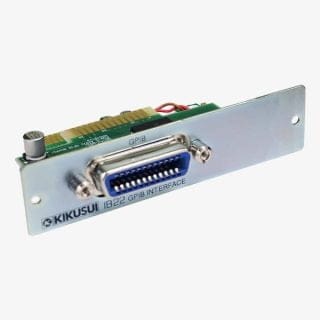

Interface boards

*Only one interface board can be installed.

LAN-RS232C Converter Introduction

XDT2321002-01-S xDirect232 Ver. RS232C (AC Adapter Included)/(LAN-RS232C Converter)*The following interface can be used.
LANTRONIX, Inc. xDirect
[Notes] *Please refer to the LANTRONIX Corporation instruction manual for details on RS232C control using the LAN-RS232C converter.
*We can not guarantee compatibility with your computer, etc.
