Compact Variable-switching Regulated DC Power Supply

– PAV Series

  • Rated Power：200/400/600/800 W
  • Rated Voltage：10/20/36/60/100/160/320/650 V
Product CatalogInstruction Manual
Request for Quotation
RS232C
RS485
USB
LAN
CEUKCA

Product Overview

Features

Remote sensing

These features compensate voltage drops in wires from the output terminals to the load terminals of the PAV series.

Remote sensing

Output voltage and output current control using external voltage

It is possible to control the output voltage/output current of the PAV series by using an external voltage.

Output voltage and output current control using

Output voltage and output current control using external resistance

It is possible to control the output voltage/output current of the PAV series by using an external variable resistor.

Output voltage and output current control using

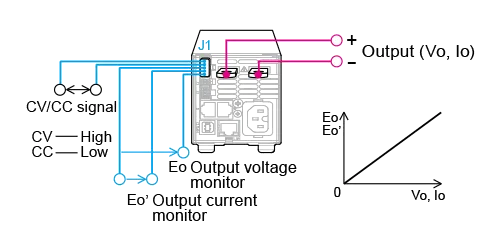

Output voltage/current remote monitoring and CV/CC signals

Voltages from 0 V to 5 V or 0 V to 10 V are output proportionally to the output voltage/current from the PAV series. The operation state becomes HIGH in CV constant voltage mode and LOW in CC constant current mode.

monitoring

Output on/off control

It is possible to turn the output ON/OFF of the PAV series by using an external contact.

Output on/off control

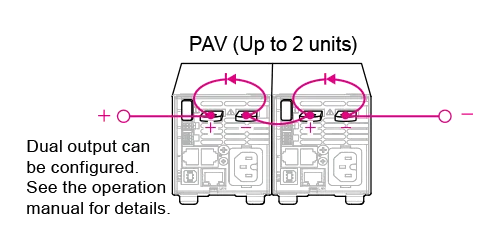

Series operation

You can connect PAV series with the same rating in series to increase the output voltage. (up to 2 units) Dual output configuration is also supported.

Models whose rated output voltage is 10 V, 20 V or 36 V : ±60 Vdc or less
Models whose rated output voltage is 60 V or 100 V : ±100 Vdc or less
Models whose rated output voltage is 160 V, 320 V, or 650 V : ±650 Vdc or less

Series operation

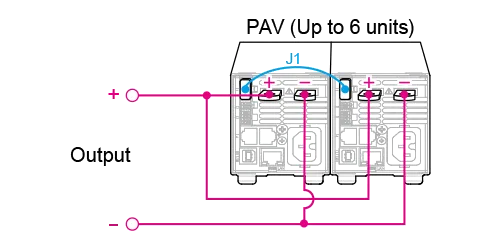

Master-slave parallel operation

The PAV series allows up to 6 parallel connections to increase the output current.

Parallel operation

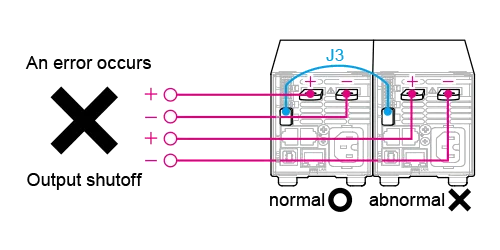

Daisy chain connection

A multiple power supply system configured with more than one PAV series allows to create a multi-power supply system that stops all the power supply outputs if any power supply fails.

Daisy chain connection

PS_OK signal

A failure is notified by a TTL level signal if the protection function is activated. The PS_ OK level is HIGH in normal operating state.

PS_OK signal

J1 connector pin arrangement

J1 connector pin arrangement

Open in a new window
Terminal No.Signal nameFunction
1LOC/REM SELECTLocal/remote switching
2PCurrent balance terminal for master-slave parallel operation
3I_MONOutput current monitoring terminal
4LOC/REM MONLocal/remote status output
5IPGMOutput current control using external voltage or external resistance
6VPGMOutput voltage control using external voltage or external resistance
7COMCommon ground for VMON, IMON, CV/CC, and LOC/REM signals (connected internally to the negative sensing terminal (-S))
8CV/CCConstant voltage/constant current operation mode indication terminal (The ground is COM.)
9COMCommon ground for VMON, IMON, CV/CC, and LOC/REM signals (connected internally to the negative sensing terminal (-S))
10V_MONOutput voltage monitoring terminal
11IPGM_RTNGround for IPGM
12VPGM_RTNGround for VPGM (connected internally to the negative sensing terminal (-S))

J3 connector specifications

J3 connector specifications Signals and functions Signals and functions

Open in a new window
Terminal No.Signal nameFunction
1Aux Pin 1General-purpose open collector output (1)
2PS_OKStatus output terminal indicating the output state (on/shut off)
3Trigger OutTrigger output terminal
4ILCOutput on/off control input terminal Output on when shorted; output off when open (isolated from the output)
5Shut Off (SO)Output shutoff control terminal (isolated from the output)
6Aux Pin 2General-purpose open collector output (2)
7IFC_COMJ3 common ground (isolated from the output)
8Trigger InTrigger input terminal

USB/RS232C/RS485 Control

The PAV series comes standard with RS232C/RS485 interfaces. It is possible to connect and control up to 31 PAV series units. Additionally, the RS232C/RS485 interfaces are built into the PAV series main unit.

RS232C/RS485 Control

Parallel operation/Synchronized operation

Parallel operation (PAV series with the same rating) and synchronized operation (trigger synchronization) are available.
Use of optional rack-mount adapter KRA2-PAV (allows up to 6 units) and half-size integrated chassis cover CC01- PAV (allows up to 3 units) allows integration for smart rack mounting and transportation.
*Parallel operation and synchronized operation can be achieved without the optional KRA2-PAV and CC01-PAV.

Parallel operation Parallel operation/Synchronized operation Synchronized Operation

Example of using option

example of using option

Specifications

– PAV Series 200W Type

Output
Open in a new window
Item/ModelPAV10-20PAV20-10PAV36-6PAV60-3.5PAV100-2PAV160-1.3PAV320-0.65PAV650-0.32
Rated output voltage *110V20V36V60V100V160V320V650V
Rated output current *220A10A6A3.5A2A1.3A0.65A0.32A
Rated output power200W200W216W210W200W208W208W208W
AC input
Open in a new window
Item/ModelPAV10-20PAV20-10PAV36-6PAV60-3.5PAV100-2PAV160-1.3PAV320-0.65PAV650-0.32
Nominal input rating100 Vac to 240 Vac continuous input, 50 Hz to 60 Hz, single phase
Input voltage range85 Vac to 265 Vac
Input frequency range47 Hz to 63 Hz
Input current (typ) *3 (100 Vac/200 Vac)2.65A/1.31A2.62A/1.29A2.76A/1.37A2.69A/1.33A2.55A/1.26A2.64A/1.30A
Power factor (typ) (100 Vac/200 Vac, at the rated output power)0.99/0.98
Efficiency (typ) *376%/77.5%77%/79%79%/80.5%79%/80.5%79%/81%79%/81%
Inrush current (100 Vac/200 Vac) *415 A / 30 A or less25 A / 25 A or less
Constant voltage mode
Open in a new window
Item/ModelPAV10-20PAV20-10PAV36-6PAV60-3.5PAV100-2PAV160-1.3PAV320-0.65PAV650-0.32
Maximum line regulation *5 (for the rated output voltage)0.01% +2mV0.01%
Maximum load regulation *6 (for the rated output voltage)
Ripple noise *720 MHz, p-p50mV50mV50mV50mV80mV100mV150mV250mV
5 Hz to 1 MHz, rms5mV6mV6mV7mV8mV10mV25mV60mV
Temperature coefficient30 PPM /°C (after a 30 minute warm-up, for the rated output voltage)
Aging drift *8 (for the rated output voltage)0.02%
Initial drift *9 (for the rated output voltage)0.05% +2mV0.05%
Maximum remote sensing compensation voltage (single line (positive or negative))1V1V2V3V5V5V
Rise time *1015ms30ms30ms50ms50ms110ms170ms170ms
Fall timeAt full load *1012ms25ms30ms40ms50ms180ms270ms270ms
Td (typ) *11210ms250ms320ms380ms1200ms—
No load a *1240ms65ms85ms100ms250ms—
No load b *13200ms200ms290ms310ms1100ms2000ms2500ms3000ms
Transient response time *141 ms or less2 ms or less
Output hold time (typ) *1515ms16ms16ms16ms15ms
Constant current mode
Open in a new window
Item/ModelPAV10-20PAV20-10PAV36-6PAV60-3.5PAV100-2PAV160-1.3PAV320-0.65PAV650-0.32
Maximum line regulation *5 (at the rated output current)0.01% +2mA0.02%
Maximum load regulation *16 (at the rated output current)0.01% +5mA0.09%0.15%
Change in the load due to the temperature drift of internal components (at the rated output current)0.05% or less (for 30 minutes after the load conditions are changed)
Ripple noise *17 (5 Hz to 1 MHz, rms)25mA15mA8mA4mA3mA1.2mA0.8mA0.5mA
Temperature coefficient100PPM/℃（30分ウォームアップ後、定格出力電流に対して）
Aging drift *8 (at the rated output current)0.05%
Initial drift *9 (at the rated output current)0.1%
Protection functions
Open in a new window
Item/ModelPAV10-20PAV20-10PAV36-6PAV60-3.5PAV100-2PAV160-1.3PAV320-0.65PAV650-0.32
Foldback protectionTurns off the output when the operation switches from constant voltage mode to constant current mode or vice versa. Can be set as necessary.
Overvoltage protection (OVP)Inverter shutoff system. Prevents the output voltage from being set higher than the OVP value. Also shuts off the output when an output overvoltage (exceeding the OVP value) occurs.
Overvoltage protection voltage setting range0.5 V to 12 V1 V to 24 V2 V to 40 V5 V to 66 V5 V to 110 V5 V to 176 V5 V to 353 V5 V to 717 V
Undervoltage limit (UVL)Prevents the output voltage from being set lower than the UVL value. Disabled during external control.
Undervoltage protection (UVP)Shuts off the output when the output voltage falls below the UVP value.
Overheat protectionShuts off the output before the temperature of the internal components exceeds the safe operation temperature.
Setting and readback (USB, RS232, RS485, optional LAN interface)
Open in a new window
Item/ModelPAV10-20PAV20-10PAV36-6PAV60-3.5PAV100-2PAV160-1.3PAV320-0.65PAV650-0.32
Output Voltage SettingAccuracy0.05% of the rated output voltage0.05% of the output voltage + 0.05% of the rated output voltage
Number of decimal digits3 digits2 digits
ResolutionApprox. 1/60000 of rated output voltage
Output current settingAccuracy *180.1% of output current + 0.1% of the rated output current0.2% of the rated output current
Number of decimal digits3 digits4 digits
ResolutionApprox. 1/60000 of rated output current
Output voltage readbackAccuracy0.05% of the rated output voltage0.05% of the output voltage + 0.05% of the rated output voltage
ResolutionApprox. 1/60000 of rated output voltage
Output current readbackAccuracy *180.1% of output current + 0.3% of the rated output current
ResolutionApprox. 1/60000 of rated output current
Front panel
Open in a new window
Item/ModelPAV10-20PAV20-10PAV36-6PAV60-3.5PAV100-2PAV160-1.3PAV320-0.65PAV650-0.32
Control function
  • Separate knobs (encoders) for setting the output voltage and output current (setting resolution switchable).
  • Knobs (encoders) for setting OVP,UVP,and UVL.
  • Protection functions (OVP, UVP, UVL, foldback)
  • Output shutoff function (output on/off control, shutdown)
  • Communication functions: Standard equipped with USB, RS232, RS485. LAN optional.
  • Baudrate, address setting
  • External control: Configuration using external voltage (5 V or 10 V) or external resistance (5 kΩ or 10 kΩ), output voltage/current monitor output (5 V or 10 V), output on/off, front panel operation lock
Output voltage displayAccuracy0.5% of the rated output voltage ± 1 count
Number of decimal digits2 digits1 digit
Output current displayAccuracy0.5% of the rated output current ± 1 count
Number of decimal digits2 digits3 digits
LED displayGreen: FINE, MENU, SET, ALARM, REM, OUTPUT, CV, CC
Red: ALARM (OVP, UVP, OTP, FOLD, AC FAIL)
Setting keysFINE, MENU, SET, ALARM, REM, OUTPUT
line-up
Open in a new window
ImageModelPriceOutputRippleLine regulationLoad regulationAC inputDimensionsWeight
CVCCCV（rms）CC（rms）CVCCCVCCVoltagecurrent *1TypeApprox.
PAVPAV10-20価格お問い合わせ0 to 10V0 to 20A5mV25mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V2.65 / 1.31AI1.9 kg (4.2 lbs)
PAVPAV10-20 with LAN価格お問い合わせ
PAVPAV20-10価格お問い合わせ0 to 20V0 to 10A6mV15mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V2.62 / 1.29AI1.9 kg (4.2 lbs)
PAVPAV20-10 with LAN価格お問い合わせ
PAVPAV36-6価格お問い合わせ0 to 36V0 to 6A6mV8mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V2.76 / 1.37AI1.9 kg (4.2 lbs)
PAVPAV36-6 with LAN価格お問い合わせ
PAVPAV60-3.5価格お問い合わせ0 to 60V0 to 3.5A7mV4mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V2.69 / 1.33AI1.9 kg (4.2 lbs)
PAVPAV60-3.5 with LAN価格お問い合わせ
PAVPAV100-2価格お問い合わせ0 to 100V0 to 2A8mV3mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V2.55 / 1.26AI1.9 kg (4.2 lbs)
PAVPAV100-2 with LAN価格お問い合わせ
PAVPAV160-1.3価格お問い合わせ0 to 160V0 to 1.3A10mV1.2mA0.01%0.02%0.01%0.09%85 to 265V2.64 / 1.30AII1.9 kg (4.2 lbs)
PAVPAV160-1.3 with LAN価格お問い合わせ
PAVPAV320-0.65価格お問い合わせ0 to 320V0 to 0.65A25mV0.8mA0.01%0.02%0.01%0.09%85 to 265V2.64 / 1.30AII1.9 kg (4.2 lbs)
PAVPAV320-0.65 with LAN価格お問い合わせ
PAVPAV650-0.32価格お問い合わせ0 to 650V0 to 0.32A60mV0.5mA0.01%0.02%0.01%0.15%85 to 265V2.64 / 1.30AII1.9 kg (4.2 lbs)
PAVPAV650-0.32 with LAN価格お問い合わせ

*1 Input voltage 100 Vac / 200 Vac, at the rated output power, ambient temperature 25°C, If the LAN option is built in, the efficiency decreases by 0.5% and the input current increases by 0.5%.

Simplified line-up
Open in a new window
SpecificationsOutputRippleLine regulationLoad regulationDimensionsWeightAC input
ModelCVCCCVCCCVCCCVCCTypeApprox.Voltagecurrent *1
PAV10-20
（with LAN）		0 to 10V0 to 20A5mVrms25mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V2.65/1.31A
PAV20-10
（with LAN）		0 to 20V0 to 10A6mVrms15mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V2.62/1.29A
PAV36-6
（with LAN）		0 to 36V0 to 6A6mVrms8mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V2.76/1.37A
PAV60-3.5
（with LAN）		0 to 60V0 to 3.5A7mVrms4mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V2.69/1.33A
PAV100-2
（with LAN）		0 to 100V0 to 2A8mVrms3mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V2.55/1.26A
PAV160-1.3
（with LAN）		0 to 160V0 to 1.3A10mVrms1.2mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V2.64/1.30A
PAV320-0.65
（with LAN）		0 to 320V0 to 0.65A25mVrms0.8mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V2.64/1.30A
PAV650-0.32
（with LAN）		0 to 650V0 to 0.32A60mVrms0.5mArms0.01%0.02%0.01%0.15%II2 kg (4.4 lbs)85 to 265V2.64/1.30A

*1 Input voltage 100 Vac / 200 Vac, at the rated output power, ambient temperature 25°C, If the LAN option is built in, the efficiency decreases by 0.5% and the input current increases by 0.5%.

– PAV Series 400W Type

Output
Open in a new window
Item/ModelPAV10-40PAV20-20PAV36-12PAV60-7PAV100-4PAV160-2.6PAV320-1.3PAV650-0.64
Rated output voltage *110V20V36V60V100V160V320V650V
Rated output current *240A20A12A7A4A2.6A1.3A0.64A
Rated output power400W400W432W420W400W416W416W416W
AC input
Open in a new window
Item/ModelPAV10-40PAV20-20PAV36-12PAV60-7PAV100-4PAV160-2.6PAV320-1.3PAV650-0.64
Nominal input rating100 Vac to 240 Vac continuous input, 50 Hz to 60 Hz, single phase
Input voltage range85 Vac to 265 Vac
Input frequency range47 Hz to 63 Hz
Input current (typ) *3 (100 Vac/200 Vac)5.05A/2.47A4.98A/2.45A5.25A/2.57A5.10A/2.50A4.80A/2.37A5A/2.44A
Power factor (typ) (100 Vac/200 Vac, at the rated output power)0.99
Efficiency (typ) *380%/82%81%/83%83%/85%83%/85%84%/88%84%/86%
Inrush current (100 Vac/200 Vac) *425 A / 25 A or less25 A / 25 A or less
Constant voltage mode
Open in a new window
Item/ModelPAV10-40PAV20-20PAV36-12PAV60-7PAV100-4PAV160-2.6PAV320-1.3PAV650-0.64
Maximum line regulation *5 (for the rated output voltage)0.01% +2mV0.01%
Maximum load regulation *6 (for the rated output voltage)
Ripple noise *720 MHz, p-p50mV50mV50mV50mV80mV100mV150mV250mV
5 Hz to 1 MHz, rms5mV6mV6mV7mV8mV10mV25mV60mV
Temperature coefficient30 PPM /°C (after a 30 minute warm-up, for the rated output voltage)
Aging drift *8 (for the rated output voltage)0.02%
Initial drift *9 (for the rated output voltage)0.05% +2 mV0.05%
Maximum remote sensing compensation voltage (single line (positive or negative))1V1V2V3V5V5V
Rise time *1015ms30ms30ms50ms50ms80ms150ms150ms
Fall timeAt full load *1010ms10ms15ms30ms50ms100ms150ms150ms
Td (typ) *11210ms250ms320ms380ms1200ms—
No load a *1240ms65ms85ms100ms250ms—
No load b *13200ms200ms290ms310ms1100ms2000ms2500ms3000ms
Transient response time *141 ms or less2 ms or less
Output hold time (typ) *1515ms16ms16ms15ms
Constant current mode
Open in a new window
Item/ModelPAV10-40PAV20-20PAV36-12PAV60-7PAV100-4PAV160-2.6PAV320-1.3PAV650-0.64
Maximum line regulation *5 (at the rated output current)0.01% +2mA0.02%
Maximum load regulation *16 (at the rated output current)0.01% +5mA0.09%
Change in the load due to the temperature drift of internal components (at the rated output current)0.05% or less (for 30 minutes after the load conditions are changed)
Ripple noise *17 (5 Hz to 1 MHz, rms)70mA40mA15mA8mA3mA1.5mA1mA0.6mA
Temperature coefficient100PPM/℃（30分ウォームアップ後、定格出力電流に対して）
Aging drift *8 (at the rated output current)0.05%
Initial drift *9 (at the rated output current)0.1%
Protection functions
Open in a new window
Item/ModelPAV10-40PAV20-20PAV36-12PAV60-7PAV100-4PAV160-2.6PAV320-1.3PAV650-0.64
Foldback protectionTurns off the output when the operation switches from constant voltage mode to constant current mode or vice versa. Can be set as necessary.
Overvoltage protection (OVP)Inverter shutoff system. Prevents the output voltage from being set higher than the OVP value. Also shuts off the output when an output overvoltage (exceeding the OVP value) occurs.
Overvoltage protection voltage setting range0.5 V to 12 V1 V to 24 V2 V to 40 V5 V to 66 V5 V to 110 V5 V to 176 V5 V to 353 V5 V to 717 V
Undervoltage limit (UVL)Prevents the output voltage from being set lower than the UVL value. Disabled during external control.
Undervoltage protection (UVP)Shuts off the output when the output voltage falls below the UVP value.
Overheat protectionShuts off the output before the temperature of the internal components exceeds the safe operation temperature.
Setting and readback (USB, RS232, RS485, optional LAN interface)
Open in a new window
Item/ModelPAV10-40PAV20-20PAV36-12PAV60-7PAV100-4PAV160-2.6PAV320-1.3PAV650-0.64
Output Voltage SettingAccuracy0.05% of the rated output voltage0.05% of the output voltage + 0.05% of the rated output voltage
Number of decimal digits3 digits2 digits
ResolutionApprox. 1/60000 of rated output voltage
Output current settingAccuracy *180.1% of output current + 0.1% of the rated output current0.2% of the rated output current
Number of decimal digits3 digits4 digits
ResolutionApprox. 1/60000 of rated output current
Output voltage readbackAccuracy0.05% of the rated output voltage0.05% of the output voltage + 0.05% of the rated output voltage
ResolutionApprox. 1/60000 of rated output voltage
Output current readbackAccuracy *180.1% of output current + 0.3% of the rated output current
ResolutionApprox. 1/60000 of rated output current
Front panel
Open in a new window
Item/ModelPAV10-40PAV20-20PAV36-12PAV60-7PAV100-4PAV160-2.6PAV320-1.3PAV650-0.64
Control function
  • Separate knobs (encoders) for setting the output voltage and output current (setting resolution switchable).
  • Knobs (encoders) for setting OVP,UVP,and UVL.
  • Protection functions (OVP, UVP, UVL, foldback)
  • Output shutoff function (output on/off control, shutdown)
  • Communication functions: Standard equipped with USB, RS232, RS485. LAN optional.
  • Baudrate, address setting
  • External control: Configuration using external voltage (5 V or 10 V) or external resistance (5 kΩ or 10 kΩ), output voltage/current monitor output (5 V or 10 V), output on/off, front panel operation lock
Output voltage displayAccuracy0.5% of the rated output voltage ± 1 count
Number of decimal digits2 digits1 digit
Output current displayAccuracy0.5% of the rated output current ± 1 count
Number of decimal digits2 digits3 digits
LED displayGreen: FINE, MENU, SET, ALARM, REM, OUTPUT, CV, CC
Red: ALARM (OVP, UVP, OTP, FOLD, AC FAIL)
Setting keysFINE, MENU, SET, ALARM, REM, OUTPUT
line-up
Open in a new window
ImageModelPriceOutputRippleLine regulationLoad regulationAC inputDimensionsWeight
CVCCCV（rms）CC（rms）CVCCCVCCVoltageCurrent*1TypeApprox.
PAVPAV10-40価格お問い合わせ0 to 10V0 to 40A5mV70mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V5.05 / 2.47AI1.9 kg (4.2 lbs)
PAVPAV10-40 with LAN価格お問い合わせ
PAVPAV20-20価格お問い合わせ0 to 20V0 to 20A6mV40mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V4.98 / 2.45AI1.9 kg (4.2 lbs)
PAVPAV20-20 with LAN価格お問い合わせ
PAVPAV36-12価格お問い合わせ0 to 36V0 to 12A6mV15mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V5.25 / 2.57AI1.9 kg (4.2 lbs)
PAVPAV36-12 with LAN価格お問い合わせ
PAVPAV60-7価格お問い合わせ0 to 60V0 to 7A7mV8mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V5.10 / 2.50AI1.9 kg (4.2 lbs)
PAVPAV60-7 with LAN価格お問い合わせ
PAVPAV100-4価格お問い合わせ0 to 100V0 to 4A8mV3mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V4.80 / 2.37AI1.9 kg (4.2 lbs)
PAVPAV100-4 with LAN価格お問い合わせ
PAVPAV160-2.6価格お問い合わせ0 to 160V0 to 2.6A10mV1.5mA0.01%0.02%0.01%0.09%85 to 265V5 / 2.44AII1.9 kg (4.2 lbs)
PAVPAV160-2.6 with LAN価格お問い合わせ
PAVPAV320-1.3価格お問い合わせ0 to 320V0 to 1.3A25mV1mA0.01%0.02%0.01%0.09%85 to 265V5 / 2.44AII1.9 kg (4.2 lbs)
PAVPAV320-1.3 with LAN価格お問い合わせ
PAVPAV650-0.64価格お問い合わせ0 to 650V0 to 0.64A60mV0.6mA0.01%0.02%0.01%0.09%85 to 265V5 / 2.44AII1.9 kg (4.2 lbs)
PAVPAV650-0.64 with LAN価格お問い合わせ

*1 Input voltage 100 Vac / 200 Vac, at the rated output power, ambient temperature 25°C, If the LAN option is built in, the efficiency decreases by 0.5% and the input current increases by 0.5%.

Simplified line-up
Open in a new window
SpecificationsOutputRippleLine regulationLoad regulationDimensionsWeightAC input
ModelCVCCCVCCCVCCCVCCTypeApprox.Voltagecurrent *1
PAV10-40
（with LAN）		0 to 10V0 to 40A5mVrms70mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V5.05/2.47A
PAV20-20
（with LAN）		0 to 20V0 to 20A6mVrms40mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V4.98/2.45A
PAV36-12
（with LAN）		0 to 36V0 to 12A6mVrms15mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V5.25/2.57A
PAV60-7
（with LAN）		0 to 60V0 to 7A7mVrms8mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V5.10/2.50A
PAV100-4
（with LAN）		0 to 100V0 to 4A8mVrms3mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V4.80/2.37A
PAV160-2.6
（with LAN）		0 to 160V0 to 2.6A10mVrms1.5mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V5/2.44A
PAV320-1.3
（with LAN）		0 to 320V0 to 1.3A25mVrms1mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V5/2.44A
PAV650-0.64
（with LAN）		0 to 650V0 to 0.64A60mVrms0.6mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V5/2.44A

*1 Input voltage 100 Vac / 200 Vac, at the rated output power, ambient temperature 25°C, If the LAN option is built in, the efficiency decreases by 0.5% and the input current increases by 0.5%.

– PAV Series 600W Type

Output
Open in a new window
Item/ModelPAV10-60PAV20-30PAV36-18PAV60-10PAV100-6PAV160-4PAV320-2PAV650-1
Rated output voltage *110V20V36V60V100V160V320V650V
Rated output current *260A30A18A10A6A4A2A1A
Rated output power600W600W648W600W600W640W640W650W
AC input
Open in a new window
Item/ModelPAV10-60PAV20-30PAV36-18PAV60-10PAV100-6PAV160-4PAV320-2PAV650-1
Nominal input rating100 Vac to 240 Vac continuous input, 50 Hz to 60 Hz, single phase
Input voltage range85 Vac to 265 Vac
Input frequency range47 Hz to 63 Hz
Input current (typ) *3 (100 Vac/200 Vac)7.48A/3.69A7.22A/3.56A7.70A/3.80A7.13A/3.52A7.13A/3.52A7.47A/3.69A7.59A/3.75A
Power factor (typ) (100 Vac/200 Vac, at the rated output power)0.99/0.98
Efficiency (typ) *381%/83%84%/86%85%/87%85%/87%85%/87%86.5%/88.5%87%/88.5%86.5%/88.5%
Inrush current (100 Vac/200 Vac) *430 A / 30 A or less30 A / 30 A or less
Constant voltage mode
Open in a new window
Item/ModelPAV10-60PAV20-30PAV36-18PAV60-10PAV100-6PAV160-4PAV320-2PAV650-1
Maximum line regulation *5 (for the rated output voltage)0.01% +2mV0.01%
Maximum load regulation *6 (for the rated output voltage)
Ripple noise *720 MHz, p-p50mV50mV50mV50mV80mV100mV150mV250mV
5 Hz to 1 MHz, rms5mV5mV5mV12mV15mV10mV30mV60mV
Temperature coefficient30 PPM /°C (after a 30 minute warm-up, for the rated output voltage)
Aging drift *8 (for the rated output voltage)0.05% +2mV0.02%
Initial drift *9 (for the rated output voltage)0.05% +2 mV0.05%
Maximum remote sensing compensation voltage (single line (positive or negative))1V1V2V3V5V5V
Rise time *1050ms50ms50ms50ms100ms55ms75ms75ms
Fall timeAt full load *1025ms25ms25ms25ms80ms65ms85ms85ms
Td (typ) *11285ms425ms450ms570ms1370ms—
No load a *1265ms110ms155ms175ms375ms—
No load b *13280ms470ms470ms500ms1200ms2000ms2500ms3000ms
Transient response time *141 ms or less2 ms or less
Output hold time (typ) *1515ms20ms16ms14ms
Constant current mode
Open in a new window
Item/ModelPAV10-60PAV20-30PAV36-18PAV60-10PAV100-6PAV160-4PAV320-2PAV650-1
Maximum line regulation *5 (at the rated output current)0.01% +2mA0.02%
Maximum load regulation *16 (at the rated output current)0.01% +5mA0.09%
Change in the load due to the temperature drift of internal components (at the rated output current)0.15% or less (for 30 minutes after the load conditions are changed)0.05% or less (for 30 minutes after the load conditions are changed)
Ripple noise *17 (5 Hz to 1 MHz, rms)150mA75mA25mA8mA5mA2mA1.5mA1mA
Temperature coefficient100PPM/℃（30分ウォームアップ後、定格出力電流に対して）
Aging drift *8 (at the rated output current)0.05%
Initial drift *9 (at the rated output current)0.3%0.15%0.1%0.1%
Protection functions
Open in a new window
Item/ModelPAV10-60PAV20-30PAV36-18PAV60-10PAV100-6PAV160-4PAV320-2PAV650-1
Foldback protectionTurns off the output when the operation switches from constant voltage mode to constant current mode or vice versa. Can be set as necessary.
Overvoltage protection (OVP)Inverter shutoff system. Prevents the output voltage from being set higher than the OVP value. Also shuts off the output when an output overvoltage (exceeding the OVP value) occurs.
Overvoltage protection voltage setting range0.5 V to 12 V1 V to 24 V2 V to 40 V5 V to 66 V5 V to 110 V5 V to 176 V5 V to 353 V5 V to 717 V
Undervoltage limit (UVL)Prevents the output voltage from being set lower than the UVL value. Disabled during external control.
Undervoltage protection (UVP)Shuts off the output when the output voltage falls below the UVP value.
Overheat protectionShuts off the output before the temperature of the internal components exceeds the safe operation temperature.
Setting and readback (USB, RS232, RS485, optional LAN interface)
Open in a new window
Item/ModelPAV10-60PAV20-30PAV36-18PAV60-10PAV100-6PAV160-4PAV320-2PAV650-1
Output Voltage SettingAccuracy0.05% of the rated output voltage0.05% of the output voltage + 0.05% of the rated output voltage
Number of decimal digits3 digits2 digits
ResolutionApprox. 1/60000 of rated output voltage
Output current settingAccuracy *180.1% of output current + 0.1% of the rated output current0.2% of the rated output current
Number of decimal digits3 digits4 digits
ResolutionApprox. 1/60000 of rated output current
Output voltage readbackAccuracy0.05% of the rated output voltage0.05% of the output voltage + 0.05% of the rated output voltage
ResolutionApprox. 1/60000 of rated output voltage
Output current readbackAccuracy *180.1% of output current + 0.3% of the rated output current
ResolutionApprox. 1/60000 of rated output current
Front panel
Open in a new window
Item/ModelPAV10-60PAV20-30PAV36-18PAV60-10PAV100-6PAV160-4PAV320-2PAV650-1
Control function
  • Separate knobs (encoders) for setting the output voltage and output current (setting resolution switchable).
  • Knobs (encoders) for setting OVP,UVP,and UVL.
  • Protection functions (OVP, UVP, UVL, foldback)
  • Output shutoff function (output on/off control, shutdown)
  • Communication functions: Standard equipped with USB, RS232, RS485. LAN optional.
  • Baudrate, address setting
  • External control: Configuration using external voltage (5 V or 10 V) or external resistance (5 kΩ or 10 kΩ), output voltage/current monitor output (5 V or 10 V), output on/off, front panel operation lock
Output voltage displayAccuracy0.5% of the rated output voltage ± 1 count
Number of decimal digits2 digits1 digit
Output current displayAccuracy0.5% of the rated output current ± 1 count
Number of decimal digits2 digits3 digits
LED displayGreen: FINE, MENU, SET, ALARM, REM, OUTPUT, CV, CC
Red: ALARM (OVP, UVP, OTP, FOLD, AC FAIL)
Setting keysFINE, MENU, SET, ALARM, REM, OUTPUT
line-up
Open in a new window
ImageModelPriceOutputRippleLine regulationLoad regulationAC inputDimensionsWeight
CVCCCV（rms）CC（rms）CVCCCVCCVoltageCurrent*1TypeApprox.
PAVPAV10-60価格お問い合わせ0 to 10V0 to 60A5mV150mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V7.48 / 3.69AI2.1 kg (4.6 lbs)
PAVPAV10-60 with LAN価格お問い合わせ
PAVPAV20-30価格お問い合わせ0 to 20V0 to 30A5mV75mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V7.22 / 3.56AI2.1 kg (4.6 lbs)
PAVPAV20-30 with LAN価格お問い合わせ
PAVPAV36-18価格お問い合わせ0 to 36V0 to 18A5mV25mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V7.70/3.80AI2.1 kg (4.6 lbs)
PAVPAV36-18 with LAN価格お問い合わせ
PAVPAV60-10価格お問い合わせ0 to 60V0 to 10A12mV8mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V7.13 / 3.52AI2.1 kg (4.6 lbs)
PAVPAV60-10 with LAN価格お問い合わせ
PAVPAV100-6価格お問い合わせ0 to 100V0 to 6A15mV5mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V7.13 / 3.52AI2.1 kg (4.6 lbs)
PAVPAV100-6 with LAN価格お問い合わせ
PAVPAV160-4価格お問い合わせ0 to 160V0 to 4A10mV2mA0.01%0.02%0.01%0.09%85 to 265V7.47/ 3.69AII2 kg (4.4 lbs)
PAVPAV160-4 with LAN価格お問い合わせ
PAVPAV320-2価格お問い合わせ0 to 320V0 to 2A30mV1.5mA0.01%0.02%0.01%0.09%85 to 265V7.47/ 3.69AII2 kg (4.4 lbs)
PAVPAV320-2 with LAN価格お問い合わせ
PAVPAV650-1価格お問い合わせ0 to 650V0 to 1A60mV1mA0.01%0.02%0.01%0.09%85 to 265V7.59 / 3.75AII2 kg (4.4 lbs)
PAVPAV650-1 with LAN価格お問い合わせ

*1 Input voltage 100 Vac / 200 Vac, at the rated output power, ambient temperature 25°C, If the LAN option is built in, the efficiency decreases by 0.5% and the input current increases by 0.5%.

Simplified line-up
Open in a new window
SpecificationsOutputRippleLine regulationLoad regulationDimensionsWeightAC input
ModelCVCCCVCCCVCCCVCCTypeApprox.Voltagecurrent *1
PAV10-60
（with LAN）		0 to 10V0 to 60A5mVrms150mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V7.48/3.69A
PAV20-30
（with LAN）		0 to 20V0 to 30A5mVrms75mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V7.22/3.56A
PAV36-18
（with LAN）		0 to 36V0 to 18A5mVrms25mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V7.70/3.80A
PAV60-10
（with LAN）		0 to 60V0 to 10A12mVrms8mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V7.13/3.52A
PAV100-6
（with LAN）		0 to 100V0 to 6A15mVrms5mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V7.13/3.52A
PAV160-4
（with LAN）		0 to 160V0 to 4A10mVrms2mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V7.47/3.69A
PAV320-2
（with LAN）		0 to 320V0 to 2A30mVrms1.5mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V7.47/3.69A
PAV650-1
（with LAN）		0 to 650V0 to 1A60mVrms1mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V7.59/3.75A

*1 Input voltage 100 Vac / 200 Vac, at the rated output power, ambient temperature 25°C, If the LAN option is built in, the efficiency decreases by 0.5% and the input current increases by 0.5%.

– PAV Series 800W Type

Output
Open in a new window
Item/ModelPAV10-72PAV20-40PAV36-24PAV60-14PAV100-8PAV160-5PAV320-2.5PAV650-1.25
Rated output voltage *110V20V36V60V100V160V320V650V
Rated output current *2100Vac ≦ Vin*3
Ta*4 ≦ 50℃		72A40A24A14A8A5A2.5A1.25A
Vin<100Vac
Ta ≦ 40℃		72A40A24A14A8A5A2.5A1.25A
Vin<100Vac
40℃ <Ta ≦ 50℃		66A36A20A12.5A7.5A4.7A2.35A1.15A
Rated output power100Vac ≦ Vin
Ta ≦ 50℃		720W800W864W840W800W800W800W812.5W
Vin<100Vac
Ta ≦ 40℃		720W800W864W840W800W800W800W812.5W
Vin<100Vac
40℃ <Ta ≦ 50℃		660W720W720W750W750W752W752W747.5W
AC input
Open in a new window
Item/ModelPAV10-72PAV20-40PAV36-24PAV60-14PAV100-8PAV160-5PAV320-2.5PAV650-1.25
Nominal input rating100 Vac to 240 Vac continuous input, 50 Hz to 60 Hz, single phase
Input voltage range85 Vac to 265 Vac
Input frequency range47 Hz to 63 Hz
Input current (typ) *5 (100 Vac/200 Vac)9.00A/4.45A9.65A/4.75A10.30A/5.10A10.00A/4.95A9.50A/4.70A9.34A/4.61A9.34A/4.59A9.43A/4.66A
Power factor (typ) (100 Vac/200 Vac, at the rated output power)0.99/0.98
Efficiency (typ) *581%/83%84%/86%85%/87%85%/87%85%/87%86.5%/88.5%86.5%/89%87%/89%
Inrush current(100 Vac/200 Vac) *630 A / 30 A or less
Constant voltage mode
Open in a new window
Item/ModelPAV10-72PAV20-40PAV36-24PAV60-14PAV100-8PAV160-5PAV320-2.5PAV650-1.25
Maximum line regulation *7 (for the rated output voltage)0.01% +2mV0.01%
Maximum load regulation *8 (for the rated output voltage)
Ripple noise *920 MHz, p-p50mV50mV50mV60mV80mV100mV150mV250mV
5 Hz to 1 MHz, rms5mV5mV5mV12mV15mV10mV30mV60mV
Temperature coefficient30 PPM /°C (after a 30 minute warm-up, for the rated output voltage)
Aging drift *10 (for the rated output voltage)0.05%0.02%
Initial drift *11 (for the rated output voltage)0.05% +2mV0.05%
Maximum remote sensing compensation voltage (single line (positive or negative))1V1V2V3V5V5V
Rise time *1250ms50ms50ms50ms100ms45ms55ms55ms
Fall timeAt full load *1225ms25ms25ms25ms80ms55ms65ms65ms
Td（typ）*13285ms425ms450ms570ms1370ms—
No load a *1465ms110ms155ms175ms375ms—
No load b *15280ms470ms470ms500ms1200ms2000ms2500ms3000ms
Transient response time *161 ms or less2 ms or less
Output hold time (typ) *1710ms13ms11.5ms
Constant current mode
Open in a new window
Item/ModelPAV10-72PAV20-40PAV36-24PAV60-14PAV100-8PAV160-5PAV320-2.5PAV650-1.25
Maximum line regulation *7 (at the rated output current)0.01% +2mA0.02%
Maximum load regulation *18 (at the rated output current)0.01% +5mA0.09%
Change in the load due to the temperature drift of internal components (at the rated output current)0.15% or less0.1% or less0.05% or less
(for 30 minutes after the load conditions are changed)
Ripple noise *19 (5 Hz to 1 MHz, rms)180mA100mA31mA28mA12mA2mA1.5mA1mA
Temperature coefficient100PPM/℃（30分ウォームアップ後、定格出力電流に対して）
Aging drift *10 (at the rated output current)0.05%
Initial drift *11 (at the rated output current)0.3%0.1%
Protection functions
Open in a new window
Item/ModelPAV10-72PAV20-40PAV36-24PAV60-14PAV100-8PAV160-5PAV320-2.5PAV650-1.25
Foldback protectionTurns off the output when the operation switches from constant voltage mode to constant current mode or vice versa. Can be set as necessary.
Overvoltage protection (OVP)Inverter shutoff system. Prevents the output voltage from being set higher than the OVP value. Also shuts off the output when an output overvoltage (exceeding the OVP value) occurs.
Overvoltage protection voltage setting range0.5 V to 12 V1 V to 24 V2 V to 40 V5 V to 66 V5 V to 110 V5 V to 176 V5 V to 353 V5 V to 717 V
Undervoltage limit (UVL)Prevents the output voltage from being set lower than the UVL value. Disabled during external control.
Undervoltage protection (UVP)Shuts off the output when the output voltage falls below the UVP value.
Overheat protectionShuts off the output before the temperature of the internal components exceeds the safe operation temperature.
Setting and readback (USB, RS232, RS485, optional LAN interface)
Open in a new window
Item/ModelPAV10-72PAV20-40PAV36-24PAV60-14PAV100-8PAV160-5PAV320-2.5PAV650-1.25
Output Voltage SettingAccuracy0.05% of the rated output voltage0.05% of the output voltage + 0.05% of the rated output voltage
Number of decimal digits3 digits2 digits
ResolutionApprox. 1/60000 of rated output voltage
Output current settingAccuracy *200.1% of output current + 0.1% of the rated output current0.2% of the rated output current
Number of decimal digits2 digits3 digits4 digits
ResolutionApprox. 1/60000 of rated output current
Output voltage readbackAccuracy0.05% of the rated output voltage0.05% of the output voltage + 0.05% of the rated output voltage
ResolutionApprox. 1/60000 of rated output voltage
Output current readbackAccuracy *200.1% of output current + 0.3% of the rated output current
ResolutionApprox. 1/60000 of rated output current
Front panel
Open in a new window
Item/ModelPAV10-72PAV20-40PAV36-24PAV60-14PAV100-8PAV160-5PAV320-2.5PAV650-1.25
Control function
  • Separate knobs (encoders) for setting the output voltage and output current (setting resolution switchable).
  • Knobs (encoders) for setting OVP,UVP,and UVL.
  • Protection functions (OVP, UVP, UVL, foldback)
  • Output shutoff function (output on/off control, shutdown)
  • Communication functions: Standard equipped with USB, RS232, RS485. LAN optional.
  • Baudrate, address setting
  • External control: Configuration using external voltage (5 V or 10 V) or external resistance (5 kΩ or 10 kΩ), output voltage/current monitor output (5 V or 10 V), output on/off, front panel operation lock
Output voltage displayAccuracy0.5% of the rated output voltage ± 1 count
Number of decimal digits2 digits1 digit
Output current displayAccuracy0.5% of the rated output current ± 1 count
Number of decimal digits2 digits3 digits
LED displayGreen: FINE, MENU, SET, ALARM, REM, OUTPUT, CV, CC
Red: ALARM (OVP, UVP, OTP, FOLD, AC FAIL)
Setting keysFINE, MENU, SET, ALARM, REM, OUTPUT
Simplified line-up
Open in a new window
SpecificationsOutputRippleLine regulationLoad regulationDimensionsWeightAC input
ModelCVCCCVCCCVCCCVCCTypeApprox.Voltagecurrent *1
PAV10-72
（with LAN）		0 to 10V0 to 72A5mVrms180mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V9.00/4.45A
PAV20-40
（with LAN）		0 to 20V0 to 40A5mVrms100mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V9.65/4.75A
PAV36-24
（with LAN）		0 to 36V0 to 24A5mVrms31mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V10.30/5.10A
PAV60-14
（with LAN）		0 to 60V0 to 14A12mVrms28mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V10.00/4.95A
PAV100-8
（with LAN）		0 to 100V0 to 8A15mVrms12mArms0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mAI2 kg (4.4 lbs)85 to 265V9.5/4.7A
PAV160-5
（with LAN）		0 to 160V0 to 5A10mVrms2mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V9.34/4.61A
PAV320-2.5
（with LAN）		0 to 320V0 to 2.5A30mVrms1.5mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V9.34/4.59A
PAV650-1.25
（with LAN）		0 to 650V0 to 1.25A60mVrms1mArms0.01%0.02%0.01%0.09%II2 kg (4.4 lbs)85 to 265V9.43/4.66A

*1 Input voltage 100 Vac / 200 Vac, at the rated output power, ambient temperature 25°C, If the LAN option is built in, the efficiency decreases by 0.5% and the input current increases by 0.5%.

line-up
Open in a new window
ImageModelPriceOutputRippleLine regulationLoad regulationAC inputDimensionsWeight
CVCCCV（rms）CC（rms）CVCCCVCCVoltageCurrent*1TypeApprox.
PAVPAV10-72価格お問い合わせ0 to 10V0 to 72A5mV180mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V9.00/4.45AI2.1 kg (4.6 lbs)
PAVPAV10-72 with LAN価格お問い合わせ
PAVPAV20-40価格お問い合わせ0 to 20V0 to 40A5mV100mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V9.65/4.75AI2.1 kg (4.6 lbs)
PAVPAV20-40 with LAN価格お問い合わせ
PAVPAV36-24価格お問い合わせ0 to 36V0 to 24A5mV31mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V10.30/5.10AI2.1 kg (4.6 lbs)
PAVPAV36-24 with LAN価格お問い合わせ
PAVPAV60-14価格お問い合わせ0 to 60V0 to 14A12mV28mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V10.00/4.95AI2.1 kg (4.6 lbs)
PAVPAV60-14 with LAN価格お問い合わせ
PAVPAV100-8価格お問い合わせ0 to 100V0 to 8A15mV12mA0.01%＋2mV0.01%＋2mA0.01%＋2mV0.01%＋5mA85 to 265V9.5/4.7AI2.1 kg (4.6 lbs)
PAVPAV100-8 with LAN価格お問い合わせ
PAVPAV160-5価格お問い合わせ0 to 160V0 to 5A10mV2mA0.01%0.02%0.01%0.09%85 to 265V9.34/4.61AII2 kg (4.4 lbs)
PAVPAV160-5 with LAN価格お問い合わせ
PAVPAV320-2.5価格お問い合わせ0 to 320V0 to 2.5A30mV1.5mA0.01%0.02%0.01%0.09%85 to 265V9.34/4.59AII2 kg (4.4 lbs)
PAVPAV320-2.5 with LAN価格お問い合わせ
PAVPAV650-1.25価格お問い合わせ0 to 650V0 to 1.25A60mV1mA0.01%0.02%0.01%0.09%85 to 265V9.43/4.66AII2 kg (4.4 lbs)
PAVPAV650-1.25 with LAN価格お問い合わせ

*1 Input voltage 100 Vac / 200 Vac, at the rated output power, ambient temperature 25°C, If the LAN option is built in, the efficiency decreases by 0.5% and the input current increases by 0.5%.

Resources

Product Catalog

Compact Variable-switching Regulated DC Power Supply - PAV Series

https://global.kikusui.co.jp/download/cat_pav/

Category: Product Catalogues>DC Power Supply
Compact Variable-switching Regulated DC Power Supply - PAV Series

Rack assemblies

https://global.kikusui.co.jp/download/cat_rack_assembles/

Category: Product Catalogues>Measurement Instrument / Option
© KIKUSUI AMERICA, INC .
Privacy Policy |
KIKUSUI Holdings EMZ
