TOS7200
Dimensions / Weight
 WHD
Dimensions215 mm
(8.46 inch)		66 mm
(2.6 inch)		230 mm
(9.06 inch)
Weight : Approx.2 kg(4.41 lbs)

Insulation Resistance Test

TOS7200

TOS7200

110,000円 （税込：121,000円）

  • Output voltage setting range: -25 to -1000V
  • Resistance measurement range: 0.01MΩ to 5000MΩ
  • Provided with the discharge function
  • Equipped with the window comparator
  • Hold function (which holds the measured resistance at the end of testing while PASS judgment is being output)
  • Provided with the timer function
  • Rear output terminals
  • Measured-value monitoring terminals
  • Equipped with the panel memory (enabling 10 different settings to be stored)
  • Equipped with the SIGNAL I/O connector and remote control terminal
  • Equipped with the RS232C interface as standard
Login to myKIKUSUI   What is myKIKUSUI?
Request for Quotation
ログインして見積書発行
カート機能が動くまでの
Save to myKIKUSUI
SKU: TOS7200

Overview

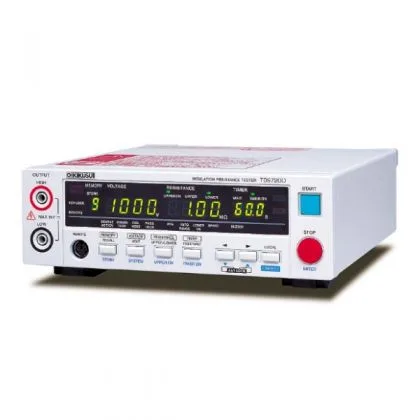

The TOS7200 is an insulation resistance tester available for a wide range of various electric and electronic components, as well as electric and electronic equipment. The output voltage can be set at desired value in the range of – 25V to -1,000V with a resolution of 1V. (conforms with the output characteristics of the JIS C 1302-2002).

As it is fitted with a window comparator and timer function, the tester is capable of efficiently conducting insulation resistance tests based on various safety standards. In addition, this product is equipped with panel memory as standard feature, which can be recalled by remote control, SIGNAL I/O connector, and the RS-232C interface for easy automatic testing system construction.

Open in a new windowZOOM

Test voltageResistance measurement range
25V0.03MΩ to 250MΩ
50V0.05MΩ to 500MΩ
100V0.10MΩ to 1000MΩ
125V0.13MΩ to 1250MΩ
250V0.25MΩ to 2500MΩ
500V0.50MΩ to 5000MΩ
1000V1.00MΩ to 5000MΩ

Specifications

Basic specifications

Open in a new windowZOOM

Output section

Output voltage range -25 V to -1000 V
Resolution1V
Setting accuracy±（1.5％ of setting ＋ 2Ｖ）
Max. rated load1W（−1000Vdc／1mA）
Max. rated current1mA
Output terminalOutput typeFloating
Isolation voltage±1000 VDC
Ripple1 kV no load2 Vp-p or less
Max. rated load10 Vp-p or less
Short-circuit current12 mA or less
Output rise time50 ms or less (10 % to 90 %) [no load]
Discharge featureForced discharge at the end of test (discharge resistance: 25 kΩ)

Voltmeter

Measurement range0 V to -1200 V
Resolution1V
Accuracy±（1％ of reading ＋ 1V）

Resistance meter

Measurement range0.01 MΩ to 5000 MΩ (In the range of over 100 nA to a maximum rated current of 1 mA)
DisplayR ＜ 10.0 MΩ：□.□□MΩ
10.0MΩ≦ R ＜ 100.0MΩ：□□.□MΩ
100.0MΩ ≦ R ＜ 1000MΩ：□□□MΩ
1000MΩ ≦ R ≦ 5000MΩ：□□□□MΩ
R = measured insulation resistance
Accuracy100nA ＜ i ≦ 200nA：±（10％ of reading）
200nA ＜ i ≦ 1μA：±（5％ of reading）
1μA ＜ i ≦1mA：±（2％ of reading）
[In the humidity range of 20 %rh to 70 %rh (no condensation), with no disturbance such as swinging of the test leadwire]
i =measured output-voltage value/measured resistance value
Measurement range The current measurement range is selectable between AUTO and FIX.
AUTOAutomatically changes the current measurement range according to the measured current value.
FIXFixes the current measurement range based on the output voltage set value and LOWER set value (in UPPER OFF status).
Holding functionThe resistance measured at the end of test is held during the PASS interval

Judgment feature

Judgment method and judgment operation
JudgmentJudgment methodDisplayBuzzerSIGNAL I/O
UPPER FAILIf a resistance value equal or higher than the upper resistance is detected, the tester shuts off the output and returns an UPPER FAIL judgment.FAIL LED lights.
UPPER LED lights.		ONOutputs an U FAIL signal
LOWER FAILIf a resistance value equal or less than the lower resistance is detected, the tester shuts off the output and returns a LOWER FAIL judgment. Note that no judgment is made within the judgment wait time (WAIT TIME) after the start of the test.FAIL LED lights.
LOWER LED lights.		ONOutputs a L FAIL signal
PASSIf no abnormality is found when the set test time has elapsed, the tester shuts off the output and returns a PASS judgment.PASS LED lights.ONOutputs a PASS signal
  • A PASS signal is output for approx. 200 ms. However, if the PASS HOLD function is set to “HOLD,” the signal is continuously output until a STOP signal is input.
  • An UPPER FAIL or LOWER FAIL signal is continuously output until a STOP signal is input.
  • The FAIL and PASS buzzer volumes are adjustable. However, they cannot be adjusted individually, as they are set in common.
Setting range for the upper reference value (UPPER)0.01 MΩ to 5000 MΩ [In the range of the maximum rated current or less]
Setting range for the lower reference value (LOWER)0.01 MΩ to 5000 MΩ [In the range of the maximum rated current or less]
Judgment accuracy
For both UPPER and LOWER
Judgement current = test voltage /(UPPER,LOWER)100nA ≦ ｉ ≦ 200 nA200 nA ＜ ｉ ≦ 1μＡ1μＡ ＜ ｉ ≦ 1mＡ
UPPER、LOWER0.01 ≦ R ＜ 10.0ＭΩ−−±（2％ of setting ＋ 3digit）
10.0 ≦ R ＜ 50.0ＭΩ−±（5％ of setting ＋ 5digit）±（2％ of setting ＋ 3digit）
50.0 ≦ R ＜ 100ＭΩ−±（5％ of setting ＋ 5digit）±（2％ of setting ＋ 3digit）
100 MΩ ≦ R ＜ 200MΩ±（10％ of setting ＋ 5digit）±（5％ of setting ＋ 5digit）±（2％ of setting ＋ 3digit）
200 MΩ ≦ R ＜ 500MΩ±（10％ of setting ＋ 5digit）±（5％ of setting ＋ 5digit）±（2％ of setting ＋ 3digit）
500 MΩ ≦ R ＜ 1000MΩ±（10％ of setting ＋ 5digit）±（5％ of setting ＋ 5digit）±（2％ of setting ＋ 3digit）
1000MΩ ≦ R ＜ 2000MΩ±（10％ of setting ＋ 50digit）±（5％ of setting ＋ 50digit）−
2000MΩ ≦ R ＜ 5000MΩ±（10％ of setting ＋ 100digit）±（5％ of setting ＋ 50digit）−

[In the humidity range of 20 %rh to 70 %rh (no condensation), with no disturbance such as swinging of the test leadwire]
The lower judgment requires a test duration of 0.5 s or more after the wait time has expired. It also requires a wait time of 1.0 s or more for a lower judgment of 200 nA or less.]

Time

Setting range for the test duration (TEST TIME)0.5 s to 999 s (TIMER OFF function provided)
Setting range for the wait time (WAIT TIME)0.3 s to 10 s [TEST TIME > WAIT TIME]
Accuracy±（100ppm ＋ 20ms）
Interface and other functions

Open in a new windowZOOM

REMOTE

6-pin mini-DIN connector on the front panel
The optional remote controller RC01-TOS or RC02-TOS is connected to remotely control starting/stopping of a test (note that a DIN-mini DIN adapter is required).

SIGNAL I/O D-SUB 25-pin connector on the rear panel

No.Signal nameI／ODescription

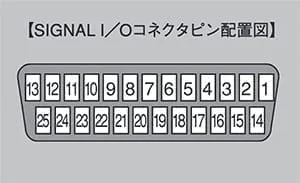

1PM0ILSB*1Pin Configuration for the SIGNAL I/O Connector]
2PM1I*1
3PM2I*1
4PM3IMSB*1
5N.C
6N.C
7N.C
8N.C
9STBIInput terminal for the strobe signal of the panel memory
10N.C
11N.C
12N.C
13COM Circuit common (chassis potential)
14H.V ONOON during a test or while a voltage remains between the output terminals
15TESTOON during a test
16PASSOON for approx. 0.2 seconds when PASS judgment is made, or continuously ON while PASS HOLD is activated
17U FAILOContinuously ON if an insulation resistance equal to or exceed-ing the upper resistance is detected, resulting in FAIL judgment
18L FAILOContinuously ON if an insulation resistance equal to or falling below the lower resistance is detected, resulting in FAIL judg-ment
19READYOON during standby
20N.C
21STARTIStart signal input terminal
22STOPIStop signal input terminal
23ENABLEIRemote control enable signal input terminal
24N.C
25COM Circuit common (chassis potential)
Input specificationsHigh-level input voltage11 V to 15 VAll input signals are active Low controlled. The input terminal is pulled up to +12 V using a resistor. Opening the input terminal is equivalent to inputting a high-level signal.
Low-level input voltage0 V to 4 V
Low-level input current-5 mA maximum
Input time width5 ms minimum
Output specificationsOutput methodOpen collector output (4.5 V to 30 V DC)
Output withstanding voltage30 V DC
Output saturation voltageApprox. 1.1 V (at 25°C)
Maximum output current400 mA (TOTAL)

* 1-digit BCD active LOW input. Panel memory’s selection signal input terminal

ANALOG OUT

Outputs a logarithmically compressed voltage corresponding to the measured resistance value

＋Vo＝log（1＋Rx／1MΩ）
where Rx = measured resistance value (1 MΩ: 0.30 V; 10 MΩ: 1.04 V; 100 MΩ: 2.00 V; 1000 MΩ: 3.00 V; 10000 MΩ or more: 4.00 V). Output impedance: 1 kΩ
Output impedance: 1 kΩ
COMAnalog output-circuit common
Accuracy±(2 % of full scale)

RS232C

D-SUB 9-pin connector on the rear panel (compliant with EIA-232-D)
All functions other than the POWER switch and KEYLOCK function are remotely controllable

Baud rate9600 bps / 19200 bps / 38400 bps (data: 8 bits; parity: none; stop bit: 2 bits fixed)

Display

7-segment LED, 4-digit voltage display, 4-digit insulation resistance display, and 3-digit time display

Memory function

A maximum of 10 types of test conditions can be stored in memory.

Backup battery life

3 years or more (at 25 °C)

TEST MODE

MOMENTARYA test is conducted only when the START switch is pressed.
FAIL MODEDisables cancellation of FAIL judgment using a stop signal via remote control.
DOUBLE ACTIONStarts a test only when the STOP switch is pressed and the START switch is pressed within approximately a half-second.
PASS HOLDAllows the time of holding PASS judgment to be set to 0.2 s or HOLD.

KEYLOCK

Places the tester in a state in which no keystroke other than the START/STOP switch is accepted.

General specifications

Open in a new windowZOOM

Environment

Installation locationIndoors and at altitudes up to 2000 m
Warranty rangeTemperature 5 °C to 35 °C (41 °F to 95 °F)
Humidity 20 %rh to 80 %rh (no condensation)
Operating rangeTemperature 0 °C to 40 °C (32 °F to 104 °F)
Humidity 20 %rh to 80 %rh (no condensation)
Storage rangeTemperature -20 °C to 70 °C (-4 °F to 158 °F)
Humidity 90 %rh or less (no condensation)

Input voltage range

Nominal voltage range (allowable voltage range)100 V to 240 V AC (85 V to 250 V AC)
Power consumption at rated load30 VA maximum
Allowable frequency range47 Hz to 63 Hz
Insulation resistance30 MΩ or more (500 V DC) [AC LINE to chassis]
Withstanding voltage1390 V AC for 2 seconds, 10 mA or less [AC LINE to chassis]
Earth continuity25 A AC / 0.1 Ω or less

Safety *1

Conforms to the requirements of the following standard.
EN 61010-1 (Class I*2 , Pollution degree 2*3 )

*1 Not applicable to custom order models. *2 This instrument is a Class I equipment. Be sure to ground the protective conductor terminal of the instrument. The safety of the instrument is not guaranteed unless the instrument is grounded properly. *3. Pollution is addition of foreign matter (solid, liquid or gaseous) that may produce a reduction of dielectric strength or surface resistivity. Pollution Degree 2 assumes that only non-conductive pollution will occur except for an occasional temporary conductivity caused by condensation

Dimensions (maximum) /Weight

215[8 .46 inch] W × 66[2 .60 inch] (85[3 .35 inch]) H × 230[9 .06 inch] (260[10 .24 inch]) D mm / Approx. 2 kg (Approx.4.41 lbs)

Accessories

AC power cable: 1 pc. / TL08-TOS high-voltage test leadwires (1.5 m): 1 set / Setup guide: 1 pc. / Quick reference: English: 1pc., Japanese: 1pc. / Safety information: 1 pc. / CD-ROM: 1 pc.
