KRB150-TOS

KRB150-TOS

12,000 (税込:13,200

  • The bracket can be used to install models of 1 (1/1) rack in width directly in the rack.

カート機能が動くまでの
SKU: KRB150-TOS
  • Feature
  • Downloads

Outline

List of products to be assembled using rack mount frame

*When PIA4800 and PIA3200 power supply controller are rank-mounted together with the power supply, the rank mount frame and rack adaptor are necessary to be added depending on the series of the connected power supply.

ModelSeriesTypeWidthRack mount frame model No.Bracket necessary when fastening mainframe to rack mount frame
For millimeter (JIS)For inch (EIA)Panel width (*1)
DC power supplyPAN-E175W1/4RMF4MRMF44 (*2)B42
350W
700W
1/2B22
PAN-A01/4B42
I2 [I3]1/2B22
PALI2 [I3]1/2
PDM35-31/2
PADI1/2
Electronic LoadPLZ-W2I1/6B24 (B11)
II1/3
PLZ-152WA1/24B22
PLZ-WI1 [I2]1/24 (*2)
controllerPIA4810
PIA4820
1/24 (*2)B2-PIA4810/20
PIA32001/4B4-PIA
DPO2212A(1/2)B24


*1 EIA panel width is 44.45 mm (1 3/4 inch). The panel width does not include the rubber feet, casters, and levelers.
*2 Since there are force-aid cooling intake holes in the side or top and bottom of the mainframe, when mounting in the rack, the blank panel at least 1 panel wide must be installed.
*3 Since those applied models were designed for the type of “Natural Cooling” unit, so it is required to have countermeasure for enough radiation of the heat when used with rack mounting system.

List of products to be assembled using brackets

*When PIA4800 and PIA3200 power supply controller are rank-mounted together with the power supply, the rank mount frame and rack adaptor are necessary to be added depending on the series of the connected power supply.

ModelSeriesTypeBracket model No.
For millimeter (JIS)Panel width (*1)For inch (EIA)Panel width (*1)
DC power supplyPAD-LAIIIKRB250-PAD5KRB5-PAD5
IVKRB500-PAD10KRB11-PAD11
PAN-AIIBH4M4 (*2)BH44 (*2)
PADII4 (*2)4 (*2)
PVSKRB50-PVS (*4)1標準付属 (*4)1
PAM2kWKRB150-TOS3KRB3-TOS3
4kWKRB300-PAM6KRB6-PAM6
PATKRB150-TOS3KRB3-TOS3
PWR1600
PWR2001L

ModelSeriesTypeBracket model No.
For millimeter (JIS)Panel width (*1)For inch (EIA)Panel width (*1)

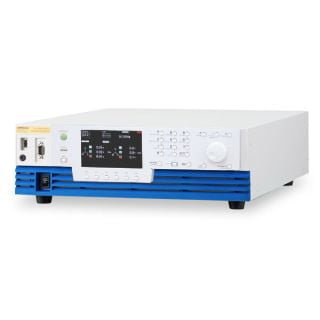

AC power supplyPCR-LE500KRB2004KRB44
1000KRB3006KRB66
2000KRB400-PCR-LE8KRB99
PCR-LA
PCR-L
500KRB250 (*3)5KRB5 (*3)5
1000KRB400 (*3)8KRB8 (*3)8
2000KRB500 (*3)10KRB11 (*3)11
4000KRB850 (*3) 17KRB19 (*3)19
PCR-W2000KRB400 (*3)8KRB8 (*3)8
4000KRB500 (*3)10KRB11 (*3)11
8000KRB850 (*3) 17KRB19 (*3)19
PCR-WE
PCR-WE2
PCR-WE2R
1000KRB150-TOS3KRB3-TOS3
2000
3000
6000KRB3006KRB66
12000KRB400-PCR-LE8KRB98
PCR-M1000KRB150-TOS3KRB3-TOS3
2000
4000KRB3006KRB66

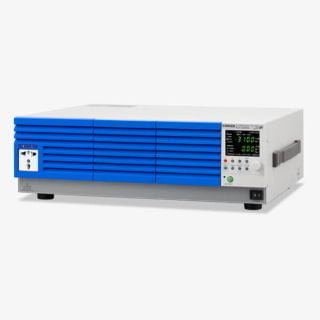

PCR-MA1000KRB150-TOS3KRB3-TOS3
2000
4000KRB3006KRB66

ModelSeriesTypeBracket model No.
For millimeter (JIS)Panel width (*1)For inch (EIA)Panel width (*1)
Electronic LoadPLZ6000RKRB2004KRB44

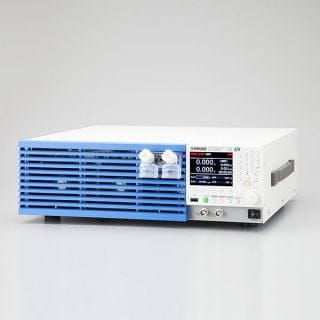

PLZ-5W1200KRB150-TOS3KRB3-TOS3
PLZ2405WBKRB100-TOS2KRB2-TOS2

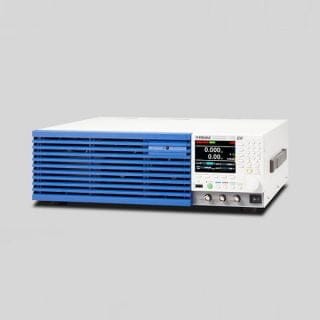

PLZ-5WH21005KRB150-TOS3KRB3-TOS3
2005
4005
12005KRB400-PCR-LE9KRB99
20005KRB60013KRB1313
PLZ-5WH12005KRB400-PCR-LE9KRB99
20005KRB60013KRB1313
PLZ-4W(H)IIKRB150-TOS3KRB3-TOS3
PLZ2004WHBKRB2004KRB44
PLZ-3WIIKRB1503KRB33
PLZ-3WH
PCZ1000(A)33
PLZ-UPLZ-50FKRB150-PLZ-50F3KRB3-PLZ-50F3
PLZ-30FKRB150-PLZ-30FKRB3-PLZ-30F
Battery TesterPFX2421KRB2004KRB44
PFX40W-08KRB1503KRB33
PFX20W-12--KRB5-PFX3
Harmonic/Flicker AnalyzerKHA1000KRB2004KRB44


*1 EIA panel width is 44.45 mm (1 3/4 inch). The panel width does not include the rubber feet, casters, and levelers.
*2 Since there are force-aid cooling intake holes in the side or top and bottom of the mainframe, when mounting in the rack, the blank panel at least 1 panel wide must be installed.
*3 Support angles are included exclusively for our open racks (KRO series).
*4 The dedicated support angle (KRB1-PVS) must be purchased separately when the PVS series is stacked.

Downloads

Product Catalog

2D CAD Data

Outline | PDF
Icon
Outline | DXF
Icon

    Operation Manuals

    KRB150-TOS
    Icon

      Product Catalog

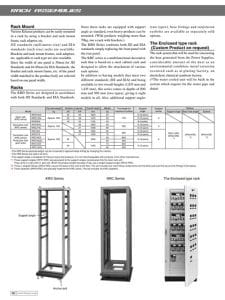

      Rack assemblies 10.86 MB
      Icon

        2D CAD

        Outline | PDF
        Icon
        Outline | DXF
        Icon

          Operation Manuals

          KRB150-TOS
          Icon

            Please feel free to contact us with any questions or concerns.

            Download a Product CatalogView List
            Request a QuotationContact Us
