Remote sensing Maximum compensation voltage (reciprocating) (TYP)
10 % of rating
Internal resistance setting upper limit
5250mΩ
21000mΩ
63000mΩ
Internal resistance setting resolution
1mΩ
2mΩ
5mΩ
Response switching
FAST, SLOW
Slew rate switching
25V/ms
50V/ms
75V/ms
12.5 V/ms
25.0V/ms
37.5 V/ms
1.25 V/ms
2.50V/ms
3.75 V/ms
0.125 V/ms
0.250V/ms
0.375 V/ms
Slew rate setting accuracy
±(20 % of setting +2.5 ms)
Transient response*3
6 ms or less
Ripple noise*4
p-p*5
700mV
1500mV
1750mV
rms*6
100mV
250mV
300mV
Rise time*7
At full load*8
25ms
No load
25ms
Fall time*9
At full load*8
25ms
No load
750ms
*1 180 Vac to 252 Vac for 200 Vac input, 342 Vac to 504 Vac for 400 Vac input. At the constant load. *2 The amount of change that occurs when the load is changed from no load to full load (rated output power/rated output voltage) with rated output voltage. The value is measured at the sensing point. *3 The amount of time required for the output voltage to return to a value within the rated output voltage ± (0.1 % + 10 mV) when the response setting of the CV mode is FAST. The load current fluctuation is 50 % to 100 % of the maximum current with the set output voltage. *4 In the case where the CV mode response setting is FAST and having the rated output current. Values measured using JEITA RC-9131C probe and 100:1 probe. *5 Measurement frequency band: 10 Hz to 20 MHz *6 Measurement frequency band: 10 Hz to 1 MHz *7 Applicable to the case where the CV mode response setting is FAST and the rated output voltage changes from 10 % to 90 %. *8 For a pure resistance. *9 Applicable to the case where the CV mode response setting is FAST and the rated output voltage changes from 90 % to 10 %.
Item
PXT20K-500
PXT20K-1000
PXT20K-1500
Maximum settable voltage
525 V
1050V
1575 V
Setting accuracy
±(0.2 % of setting + 0.1 % of rating)
Resolution
0.05 V
0.1 V
0.1 V
Power fluctuation*1
±100mV
±200mV
±300mV
Load variation*2
±250mV
±750mV
±750mV
Remote sensing Maximum compensation voltage (reciprocating) (TYP)
10 % of rating
Internal resistance setting upper limit
5250mΩ
21000mΩ
63000mΩ
Internal resistance setting resolution
1mΩ
2mΩ
5mΩ
Response switching
FAST, SLOW
Slew rate switching
25V/ms
50V/ms
75V/ms
12.5 V/ms
25.0V/ms
37.5 V/ms
1.25 V/ms
2.50V/ms
3.75 V/ms
0.125 V/ms
0.250V/ms
0.375 V/ms
Slew rate setting accuracy
±(20 % of setting +2.5 ms)
Transient response*3
6 ms or less
Ripple noise*4
p-p*5
700mV
1500mV
1750mV
rms*6
100mV
250mV
300mV
Rise time*7
At full load*8
25ms
No load
25ms
Fall time*9
At full load*8
25ms
No load
750ms
*1 180 Vac to 252 Vac for 200 Vac input, 342 Vac to 504 Vac for 400 Vac input. At the constant load. *2 The amount of change that occurs when the load is changed from no load to full load (rated output power/rated output voltage) with rated output voltage. The value is measured at the sensing point. *3 The amount of time required for the output voltage to return to a value within the rated output voltage ± (0.1 % + 10 mV) when the response setting of the CV mode is FAST. The load current fluctuation is 50 % to 100 % of the maximum current with the set output voltage. *4 In the case where the CV mode response setting is FAST and having the rated output current. Values measured using JEITA RC-9131C probe and 100:1 probe. *5 Measurement frequency band: 10 Hz to 20 MHz *6 Measurement frequency band: 10 Hz to 1 MHz *7 Applicable to the case where the CV mode response setting is FAST and the rated output voltage changes from 10 % to 90 %. *8 For a pure resistance. *9 Applicable to the case where the CV mode response setting is FAST and the rated output voltage changes from 90 % to 10 %.
*1 During parallel operation, this will be the value multiplied by the number of units in the configuration. *2 In the case that the CC mode response setting is set to FAST: Applied in response to changes from 10 % to 90 % of rated output current. *3 In the case that the CC mode response setting is set to FAST: Applied in response to changes from 90 % to 10 % of rated output current.
Item
PXT20K-500
PXT20K-1000
PXT20K-1500
Maximum settable current
126A
63A
31.5A
Setting accuracy
±(0.75 % of rating)
Resolution
0.01 A
0.005A
0.002 A
Line regulation
± 240mA
± 120mA
± 60mA
Load regulation
± 240mA
± 120mA
± 60mA
Rise time (Short-circuit) (TYP) *2
25ms
Fall time (Short-circuit) (TYP) *3
5ms
Response switching
FAST, SLOW
Slew rate switching (TYP) *1
6A/ms
3 A/ms
1.5A/ms
3 A/ms
1.5A/ms
0.75 A/ms
0.3 A/ms
0.15A/ms
0.075 A/ms
0.03A/ms
0.015A/ms
0.0075A/ms
Slew rate setting accuracy
±(20 % of setting +2.5 ms)
*1 During parallel operation, this will be the value multiplied by the number of units in the configuration. *2 In the case that the CC mode response setting is set to FAST: Applied in response to changes from 10 % to 90 % of rated output current. *3 In the case that the CC mode response setting is set to FAST: Applied in response to changes from 90 % to 10 % of rated output current.
±(0.5 % of power rating + 0.5 % of current rating × Vout)
Resolution
2 W
*1 During parallel operation, this will be the value multiplied by the number of units in the configuration. *2 Equal to or higher than 5 % of the rated power is guaranteed. Less than 5 % of the rated power is guaranteed as a TYP value.
Item
PXT20K-500
PXT20K-1000
PXT20K-1500
Maximum settable power*1
21000 W
Setting accuracy*2
±(0.5 % of power rating + 0.5 % of current rating × Vout)
Resolution
2 W
*1 During parallel operation, this will be the value multiplied by the number of units in the configuration. *2 Equal to or higher than 5 % of the rated power is guaranteed. Less than 5 % of the rated power is guaranteed as a TYP value.
*1 At the rated output power for the rated output current. *2 Maximum peak current value when the POWER switch is turned on. (Excluding the surge current to the input filter capacitor.)
Item
Common to all models
Nominal input rating
200 Vac to 240 Vac, 50 Hz to 60 Hz
Input voltage range
180 Vac to 252 Vac
Input frequency range
47 Hz to 63 Hz
Input current (MAX)*1
80 A (When Input voltage is 180 V)
Input power (MAX)*1
24kVA
Inrush current (TYP)*2
90 A
Power factor (TYP)*1
0.96
Output hold time
10ms or more
*1 At the rated output power for the rated output current. *2 Maximum peak current value when the POWER switch is turned on. (Excluding the surge current to the input filter capacitor.)
*1 At the rated output power for the rated output current. *2 Maximum peak current value when the POWER switch is turned on. (Excluding the surge current to the input filter capacitor.)
Item
Common to all models
Nominal input rating
380 Vac to 480 Vac, 50 Hz to 60 Hz
Input voltage range
342 Vac to 504 Vac
Input frequency range
47 Hz to 63 Hz
Input current (MAX)*1
40 A (When Input voltage is 342 V)
Input power (MAX)*1
24kVA
Inrush current (TYP)*2
70 A
Power factor (TYP)*1
0.96
Output hold time
10ms or more
*1 At the rated output power for the rated output current. *2 Maximum peak current value when the POWER switch is turned on. (Excluding the surge current to the input filter capacitor.)
Display the integrated value of voltmeter and ammeter
Operation display
Output ON / OFF
The OUTPUT LED on the front panel lights in green
Operation mode
Indicate the followings on the upper left part of the display
CV: Green CV icon
CC: Red CC icon
CP: Orange CP icon
Remote (LAN)
Indicate the followings on the upper left part of the display
Not connected: Red LAN icon
Preparing for connection: Orange LAN icon
Connected: Green LAN icon
Alarm
Indicate the details of activated protection function on the display
SCPI error
Indicate the error occurring at present on the display
POWER off
Indicate residual charge warning and an instruction to turn off the display, then reboot
key lock
Indicate the key lock status on the upper right part of the display
Sensing
When sensing is enabled, indicate the sensing icon on the upper right part of the display
During parallel operation
Displaying the slave state on the slave unit
External control
When digital input/output is enabled, indicate the EXT icon on the upper right part of the display
While a sequence is running
Indicate the RUN icon on the upper right part of the display
Synchronization state
Indicate the Sync icon on the upper right part of the display
Output delayed
Indicate a yellow mark on the upper left part of the display
*1 The unit will be W if it is less than 10 kW.
Item
PXT20K-500
PXT20K-1000
PXT20K-1500
Voltmeter
Maximum display
± 600.00V
± 1200.00V
± 1800.00V
Display accuracy
±(0.1 % of reading + 0.2 % of rating)
Ammeter
Maximum display
± 168.000A
± 84.000A
± 42.000A
Display accuracy
±(0.75 % of rating)
Wattmeter
Maximum display*1
± 24.000kW
Display accuracy
Display the integrated value of voltmeter and ammeter
Operation display
Output ON / OFF
The OUTPUT LED on the front panel lights in green
Operation mode
Indicate the followings on the upper left part of the display
CV: Green CV icon
CC: Red CC icon
CP: Orange CP icon
Remote (LAN)
Indicate the followings on the upper left part of the display
Not connected: Red LAN icon
Preparing for connection: Orange LAN icon
Connected: Green LAN icon
Alarm
Indicate the details of activated protection function on the display
SCPI error
Indicate the error occurring at present on the display
POWER off
Indicate residual charge warning and an instruction to turn off the display, then reboot
key lock
Indicate the key lock status on the upper right part of the display
Sensing
When sensing is enabled, indicate the sensing icon on the upper right part of the display
During parallel operation
Displaying the slave state on the slave unit
External control
When digital input/output is enabled, indicate the EXT icon on the upper right part of the display
While a sequence is running
Indicate the RUN icon on the upper right part of the display
Synchronization state
Indicate the Sync icon on the upper right part of the display
Output delayed
Indicate a yellow mark on the upper left part of the display
Too many connections (Too many parallel connections)
Protective operation
Output off, indicate “TOO MANY” on the display
Hardware ERR*1 (Hardware error)
Protective operation
Output off, indicate “ERRH” on the display. SLV ERRH is displayed on the slave unit.
Software ERR*2 (Software error)
Protective operation
Output off, indicate “ERRS” on the display. SLV ERRS is displayed on the slave unit.
*1 It occurs when an abnormality related to the software is detected and the internal unit comes to an emergency stop. *2 It occurs when an abnormality related to the software is detected and the internal unit comes to an emergency stop.
Too many connections (Too many parallel connections)
Protective operation
Output off, indicate “TOO MANY” on the display
Hardware ERR*1 (Hardware error)
Protective operation
Output off, indicate “ERRH” on the display. SLV ERRH is displayed on the slave unit.
Software ERR*2 (Software error)
Protective operation
Output off, indicate “ERRS” on the display. SLV ERRS is displayed on the slave unit.
*1 It occurs when an abnormality related to the software is detected and the internal unit comes to an emergency stop. *2 It occurs when an abnormality related to the software is detected and the internal unit comes to an emergency stop.
SYNC icon is displayed on the display when synchronization is established with the internal clock after connecting with other PXT series using the EXT SYNC connector.
Sequence synchronization
Synchronization of the program start and step start.
Measurement synchronization
Synchronization of the measurement start
Output synchronization
Synchronization of output ON/OFF
Sequence function
Operation mode
CV, CC, and CP modes
Maximum number of programs
30
Maximum number of steps
10000
Step execution time
1 ms to 3600000 s
Loop count
1 to 100000, or infinite
Output-on/off delay function
Setting range
0.0 s to 99.9 s
Resolution
0.1 s
Over current protection (OCP) delay function
Setting range
1 ms to 2000 ms
Resolution
1 ms
Multichannel (VMCB) function
Connection between the master unit and a PC
LAN, USB, RS232C
Connection with slave units
LAN
Measurement trigger
Measurement start condition (trigger source)
Conditions for starting measurement can be selected (when inputting from display, when inputting commands by remote control, when inputting signals by external control, and when operating in synchronization)
Number of measurements
1 to 65536
Measurement delay time
Setting range
0s to 100 s
Resolution
0.1ms
Measurement interval
Setting range
0.1 ms to 3600 s
Resolution
0.1ms
Measurement time
Setting range
0.1 ms to 1 s
Resolution
0.1ms
I-V Characteristic Function
Operation mode
CV/CC mode
Number of setup items
3 to 100 items (interpolated between points with straight lines)
Preset memory
Number of memory entries
20
Saved setting
Values in CV, CC, and CP modes, protection function values, IR values, bleeder, and output delay setting.
Setup Memory
Number of memory entries
21
Saved setting
On/off of the output from the DC OUTPUT terminal, Output voltage value/Output current value/Output power value, Output mode, Response, Slew Rate, Priority operation mode (Priority when output is ON), Bleeder, Output delay, Number of I-V characteristics (Count), Internal resistance value (IR), Over voltage protection (OVP), Under voltage protection (UVP, UVP Enable), Over current protection (OCP, Delay), Over power protection (OPP), Line overvoltage protection (Line OVP), Measurement trigger settings (Source, Count, Delay, Enable, Timer), Integration settings (Gate, Reset)
key lock
Level 1
Output on/off and preset memory recall are available
Level 2
Output on/off are available
Level 3
Output off is available
Number of units in parallel operation
Up to 10 units
Item
Common to all models
Synchronization function (clock synchronization)
Overview
SYNC icon is displayed on the display when synchronization is established with the internal clock after connecting with other PXT series using the EXT SYNC connector.
Sequence synchronization
Synchronization of the program start and step start.
Measurement synchronization
Synchronization of the measurement start
Output synchronization
Synchronization of output ON/OFF
Sequence function
Operation mode
CV, CC, and CP modes
Maximum number of programs
30
Maximum number of steps
10000
Step execution time
1 ms to 3600000 s
Loop count
1 to 100000, or infinite
Output-on/off delay function
Setting range
0.0 s to 99.9 s
Resolution
0.1 s
Over current protection (OCP) delay function
Setting range
1 ms to 2000 ms
Resolution
1 ms
Multichannel (VMCB) function
Connection between the master unit and a PC
LAN, USB, RS232C
Connection with slave units
LAN
Measurement trigger
Measurement start condition (trigger source)
Conditions for starting measurement can be selected (when inputting from display, when inputting commands by remote control, when inputting signals by external control, and when operating in synchronization)
Number of measurements
1 to 65536
Measurement delay time
Setting range
0s to 100 s
Resolution
0.1ms
Measurement interval
Setting range
0.1 ms to 3600 s
Resolution
0.1ms
Measurement time
Setting range
0.1 ms to 1 s
Resolution
0.1ms
I-V Characteristic Function
Operation mode
CV/CC mode
Number of setup items
3 to 100 items (interpolated between points with straight lines)
Preset memory
Number of memory entries
20
Saved setting
Values in CV, CC, and CP modes, protection function values, IR values, bleeder, and output delay setting.
Setup Memory
Number of memory entries
21
Saved setting
On/off of the output from the DC OUTPUT terminal, Output voltage value/Output current value/Output power value, Output mode, Response, Slew Rate, Priority operation mode (Priority when output is ON), Bleeder, Output delay, Number of I-V characteristics (Count), Internal resistance value (IR), Over voltage protection (OVP), Under voltage protection (UVP, UVP Enable), Over current protection (OCP, Delay), Over power protection (OPP), Line overvoltage protection (Line OVP), Measurement trigger settings (Source, Count, Delay, Enable, Timer), Integration settings (Gate, Reset)
key lock
Level 1
Output on/off and preset memory recall are available

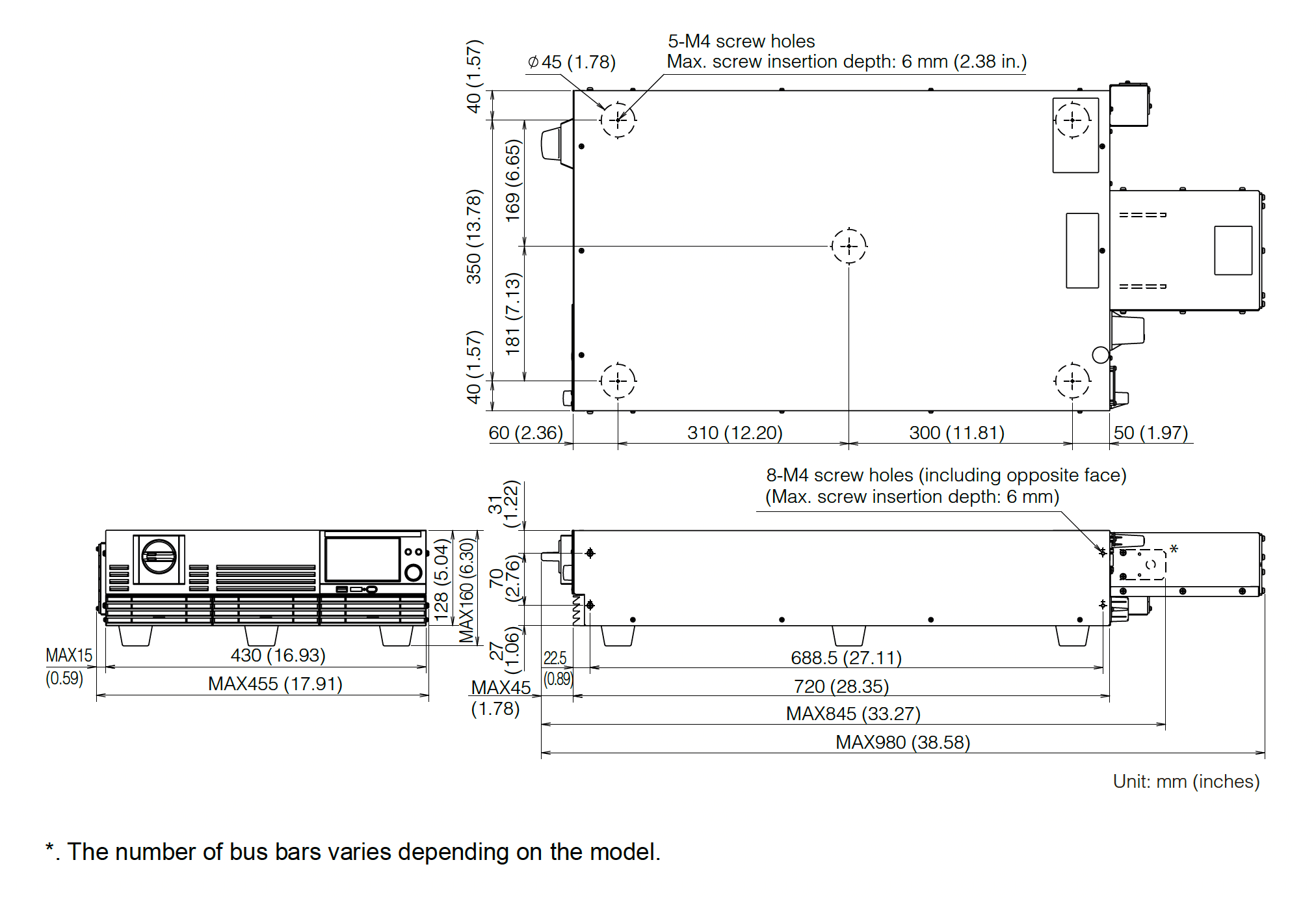

AC INPUT terminal cover, External control connector kit (1 set), Chassis connection wire, DC OUTPUT terminal cover, DC OUTPUT terminal screws (1 pair), EXT SYNC connector cover, SENSING connector cover, SENSING connector (2 pieces), Synchronized operation signal cable kit, Safety Information (1 copy), China RoHS sheet (1 copy), Getting Started Guide (1 copy), Heavy object warning label (1 piece)
Withstanding voltage
Between input and GND
2200 Vac for 1 minute
Between input and output
Between output and GND
1800 Vdc for 1 minute
1800 Vdc for 1 minute
3000 Vdc for 1 minute
Insulation resistance
Between input and GND
30 MΩ, 500 Vdc
Between input and output
30 MΩ, 1000 Vdc
Isolation voltage
± 1000V
± 1000V
+2000 V/-1000 V
Electromagnetic compatibility (EMC)*1*2
Conforms to the requirements of the following standard.
EMC Directive 2014/30/EU
EN 61326-1 (Class A*3)
Safety*1
Conforms to the requirements of the following standard.
Low Voltage Directive 2014/35/EU*2
EN 61010-1 (Class I*4, Overvoltage category II, Pollution Degree 2*5)
*1 Does not apply to specially ordered or modified products. *2 Only for models with CE marking / UKCA marking on their body. *3 This is a Class A instrument. This product is intended for use in an industrial environment. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts. *4 This is a Class I instrument. Be sure to ground this product’s protective conductor terminal. The safety of this product is guaranteed only when the product is properly grounded. *5 Pollution is addition of foreign matter (solid, liquid or gaseous) that may produce a reduction of dielectric strength or surface resistivity. Pollution Degree 2 assumes that only non-conductive pollution will occur except for an occasional temporary conductivity caused by condensation.
AC INPUT terminal cover, External control connector kit (1 set), Chassis connection wire, DC OUTPUT terminal cover, DC OUTPUT terminal screws (1 pair), EXT SYNC connector cover, SENSING connector cover, SENSING connector (2 pieces), Synchronized operation signal cable kit, Safety Information (1 copy), China RoHS sheet (1 copy), Getting Started Guide (1 copy), Heavy object warning label (1 piece)
Withstanding voltage
Between input and GND
2200 Vac for 1 minute
Between input and output
Between output and GND
1800 Vdc for 1 minute
1800 Vdc for 1 minute
3000 Vdc for 1 minute
Insulation resistance
Between input and GND
30 MΩ, 500 Vdc
Between input and output
30 MΩ, 1000 Vdc
Isolation voltage
± 1000V
± 1000V
+2000 V/-1000 V
Electromagnetic compatibility (EMC)*1*2
Conforms to the requirements of the following standard.
EMC Directive 2014/30/EU
EN 61326-1 (Class A*3)
Safety*1
Conforms to the requirements of the following standard.
Low Voltage Directive 2014/35/EU*2
EN 61010-1 (Class I*4, Overvoltage category II, Pollution Degree 2*5)
*1 Does not apply to specially ordered or modified products. *2 Only for models with CE marking / UKCA marking on their body. *3 This is a Class A instrument. This product is intended for use in an industrial environment. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts. *4 This is a Class I instrument. Be sure to ground this product’s protective conductor terminal. The safety of this product is guaranteed only when the product is properly grounded. *5 Pollution is addition of foreign matter (solid, liquid or gaseous) that may produce a reduction of dielectric strength or surface resistivity. Pollution Degree 2 assumes that only non-conductive pollution will occur except for an occasional temporary conductivity caused by condensation.
Cookies will be used to track which website is being visited. On our website, we certify the information that can be accessed by visitors using cookies. We also track viewed information by users to understand your interest and provide you with a better content. You will be able to disable cookie itself, you may choose the way to use personal identification whenever you use service that requires authentication.
Strictly Necessary Cookies
Strictly Necessary Cookie should be enabled at all times so that we can save your preferences for cookie settings.
If you disable this cookie, we will not be able to save your preferences. This means that every time you visit this website you will need to enable or disable cookies again.
