Compact AC Power Supply
PCR-MA Series
PCR-MA-SERIES
258,000円 – 1,230,000円
- Compact, switching AC power supply (PWM inverter method)
- AC output: 0 V to 155 V/0 V to 310 V at 40 Hz to 500 Hz
- DC output: ±0 V to 219 V/±0 V to 438 V
- Peak currents three times the rated current supported (RMS value)
- LAN and USB standard digital inerface (GPIB option)
- Sensing function
| Image | SKU | Method(AC) | Output: phase | Output rating AC mode: Power capacity | Output rating DC mode: Power capacity | 標準価格 | WEBかんたんお見積り |
|---|---|---|---|---|---|---|---|

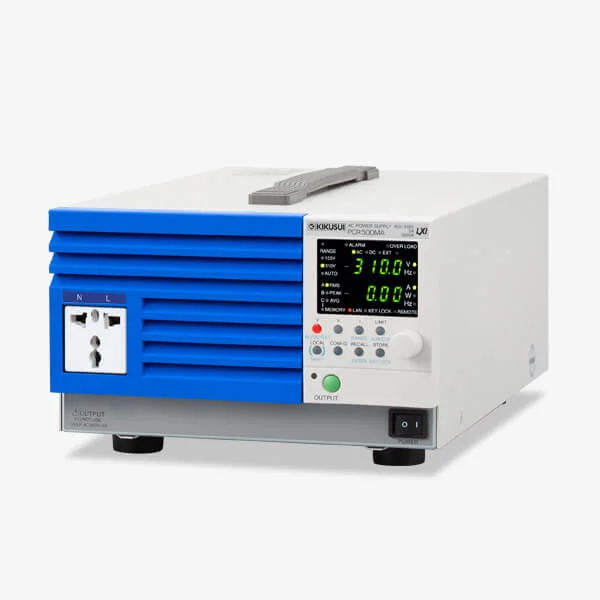

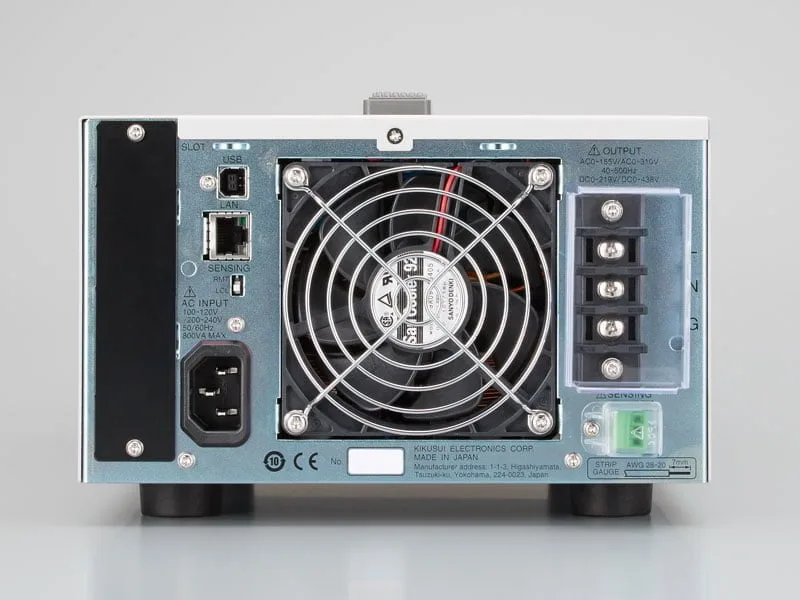

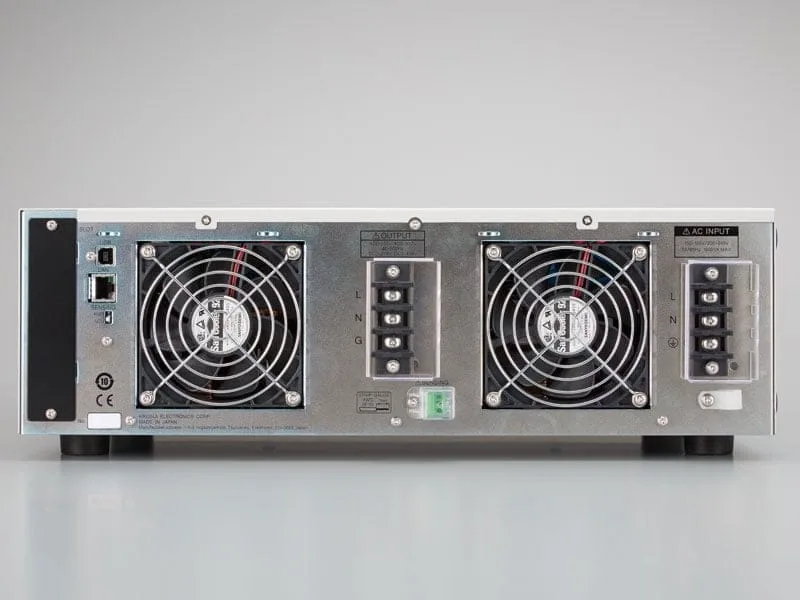

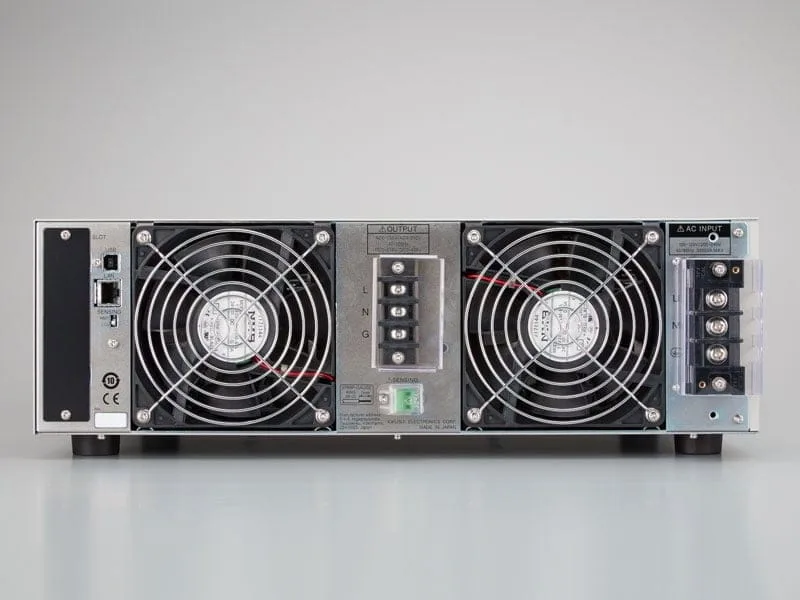

 | PCR500MA | PWM inverter method | Single-phase | 500VA | 400W | 258,000円 （税込：283,800円） | |
 | PCR1000MA | PWM inverter method | Single-phase | 1kVA | 800W | 363,000円 （税込：399,300円） | |
 | PCR2000MA | PWM inverter method | Single-phase | 2kVA | 1.6kW | 681,000円 （税込：749,100円） | |

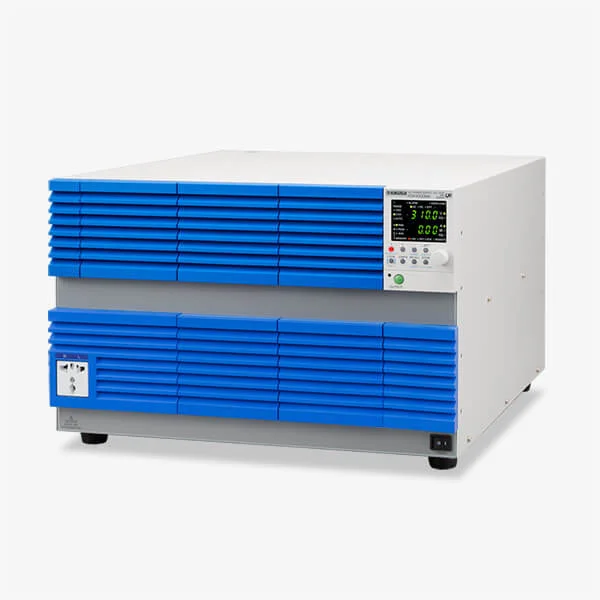

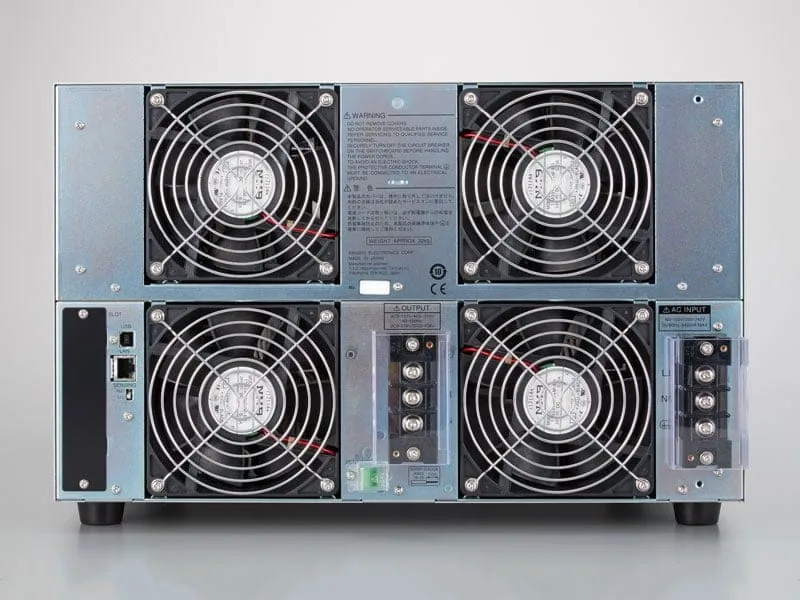

 | PCR4000MA | PWM inverter method | Single-phase | 4kVA | 3.2kW | 1,230,000円 （税込：1,353,000円） |

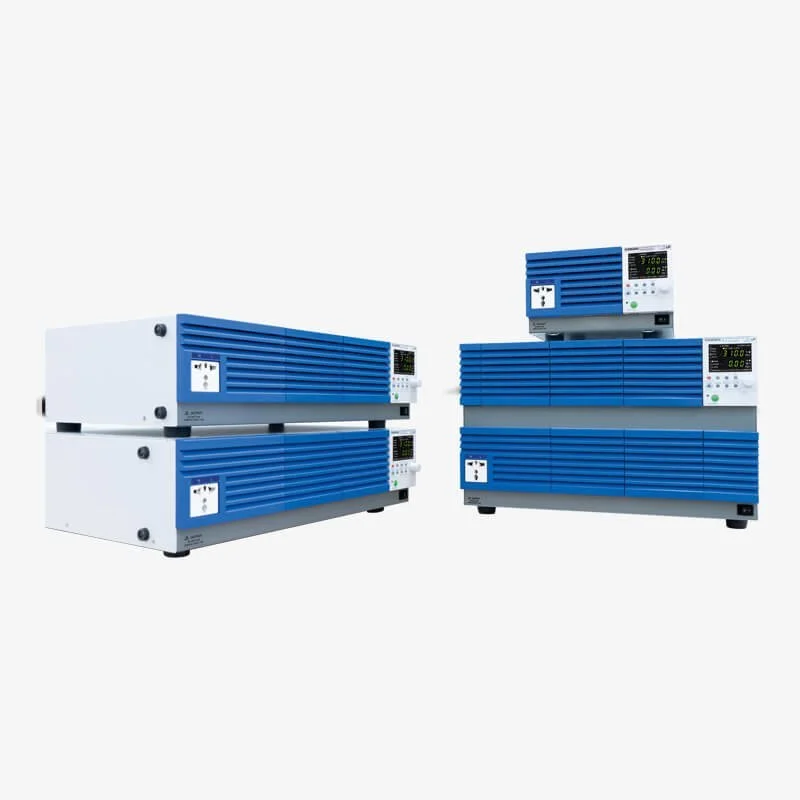

Line-up
| Product Images | Model | Circuit method (AC) | Output: Phase | Voltage | Max. currents | Power capacity | standard price |
|---|---|---|---|---|---|---|---|
| PCR500MA | PWM inverter system | Single phase | 0V to 155V 0V to 310V (2 ranges) | 5 A/2.5 A | 500VA | 258,000円 （税込：283,800円） |
| PCR1000MA | 10A/5A | 1kVA | 363,000円 （税込：399,300円） | |||
| PCR2000MA | 20A/10A | 2kVA | 681,000円 （税込：749,100円） | |||
| PCR4000MA | 40A/20A | 4kVA | 1,230,000円 （税込：1,353,000円） |
Specifications
Output rating AC mode
| Item/Model | PCR500MA | PCR1000MA | PCR2000MA | PCR4000MA | |
|---|---|---|---|---|---|
| Voltage range (155V/310V range) | Rated voltage range | 0V to 155V/0V to 310V | |||
| Settable voltage range | 0 V to 157.5 V/0 V to 315.0 V | ||||
| Voltage setting resolution | 0.1 V | ||||
| Voltage setting accuracy *1 | ±(1 % of set + 0.6 V/1.2 V) | ||||
| Number of output phases | Single phase | ||||
| Maximum current *2 | 5 A/2.5 A | 10A/5A | 20A/10A | 40A/20A | |
| Maximum peak current *3 | 15A/7.5A | 30A/15A | 60A/30A | 120A/60A | |
| Load power factor | 0 to 1 (leading or lagging) | ||||
| Power capacity | 500VA | 1kVA | 2kVA | 4kVA | |
| Frequency setting range | 40.0 Hz to 500.0 Hz | ||||
| Frequency resolution | 0.1Hz | ||||
| Frequency setting accuracy | ≤ ±2 × 10-4 | ||||
*1. For an output voltage of 13.5 V to 155 V/27 V to 310 V, an output frequency of 45 Hz to 65 Hz, no load, and 23°C ± 5°C. *2. For an output voltage of 1 V to 100 V/2 V to 200 V. Limited by the power capacity when the output voltage is 100 V to 155 V/200 V to 310 V. *3. For the capacitor-input rectifying load. Limited by the maximum current.
Output rating DC mode
| Item/Model | PCR500MA | PCR1000MA | PCR2000MA | PCR4000MA | |
|---|---|---|---|---|---|
| Voltage range (155V/310V range) | Rated voltage range | -219 V to +219 V/-438 V to +438 V | |||
| Settable voltage range | -222.5 V to +222.5V/-445.0 V to +445.0 V | ||||
| Voltage setting resolution | 0.1 V | ||||
| Voltage setting accuracy *4 | ±(1 % of set + 0.6 V/1.2 V) | ||||
| Maximum current (output 155 V/310 V range) *5 | 4A/2A | 8A/4A | 16A/8A | 32A/16A | |
| Maximum instantaneous current (output 155 V/ 310 V range) *6 | 12A/6A | 24A/12A | 48A/24A | 96A/48A | |
| Power capacity | 400W | 800W | 1600W | 3200W | |
*4. For an output voltage of 19 V to 219 V/38 V to 438 V, no load, and 23°C ± 5°C.
*5. For an output voltage of 1.4 V to 100 V/2.8 V to 200 V. Limited by the power capacity when the output voltage is 100 V to 219 V/200 V to 438 V.
*6. Limited by the maximum current.
Output voltage stability
| Item/Model | PCR500MA | PCR1000MA | PCR2000MA | PCR4000MA |
|---|---|---|---|---|
| Line regulation *7 | ≤ ±0.15 % | |||
| Load variation (output 155 V/310 V range) *8 | 40 Hz to 100 Hz, DC : ≤ ±0.15V/±0.3V Other than above : ≤ ±0.5 V/±1 V | |||
| Output frequency variation *9 | ≤ ±1 % | |||
| Ripple noise *10 | 0.8 Vrms/1.6 Vrms (TYP) | |||
| Ambient temperature variation *11 | 100 ppm/°C (TYP) | |||
| Output voltage waveform distortion ratio *12 | ≤ 0.5 % | |||
| Output voltage response speed *13 | 150 μs (TYP) | |||
| Efficiency *14 | ≥ 70 % | |||
*7. For changes in the rated range. *8. For an output voltage of 80 V to 155 V/160 V to 310 V, a load power factor of 1, output voltage variation between 0 A and maximum current, using the output terminal on the rear panel. *9. For an output voltage of 100 V/200 V and a load power factor of 1. Output voltage variation with 60 Hz as a reference. *10. For 5 Hz to 1 MHz components in DC mode using the output terminal on the rear panel. *11. For an output voltage of 100 V/200 V, an output current 0 A, within the operating temperature range. *12. For an output voltage of 50 V to 155 V/100 V to 310 V, a load power factor of 1, in AC mode. *13. For an output voltage of 100 V/200 V, a load power factor of 1, and an output current variation between 0 A and maximum current. *14. For AC mode, at an output voltage of 100 V/200 V, maximum current, a load power factor of 1, and an output frequency of 40 Hz to 500 Hz.

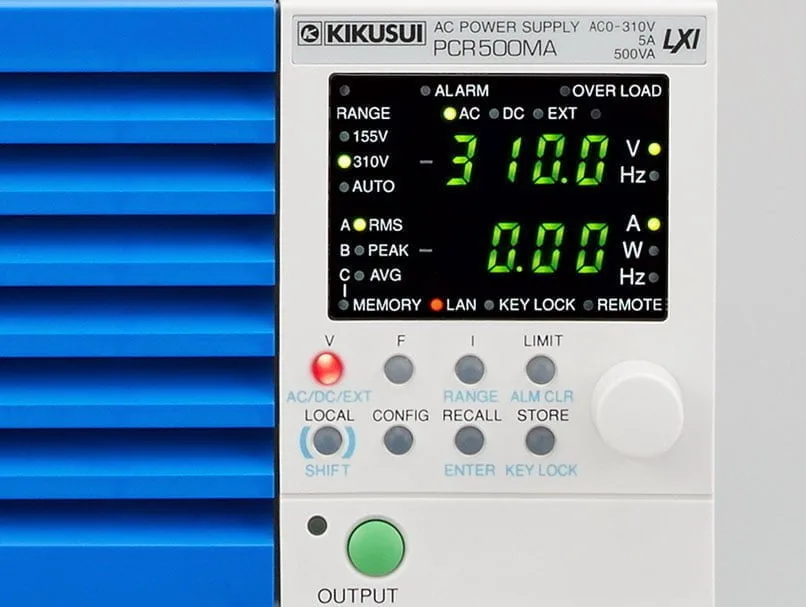

Indicators *15
| Item/Model | PCR500MA | PCR1000MA | PCR2000MA | PCR4000MA | ||
|---|---|---|---|---|---|---|
| Voltage measurement | Resolution | 0.1 V | ||||
| Accuracy (output 155 V/310 V range) | RMS, AVE *16 | 45 Hz to 65 Hz, DC : ±(0.5 % of reading +0.3 V/0.6 V) Other than above : ±(0.7 % of reading +0.9 V/1.8 V) | ||||
| Current measurement | Resolution | 0.01 A | 0 A to 99.99 A (RMS, AVE): 0.01 A 100 A to (RMS, AVE), IPK: 0.1A | |||
| Accuracy (output 155 V/310 V range) | RMS, AVE *17 | 45 Hz to 65 Hz, DC: ±(0.5 % of reading +0.02 A/0.01 A) Other than above: ±(0.7 % of reading +0.04 A/0.02 A) | 45 Hz to 65 Hz, DC: ±(0.5 % of reading +0.04 A/0.02 A) Other than above: ±(0.7 % of reading +0.08 A/0.04 A) | 45 Hz to 65 Hz, DC: ±(0.5 % of reading +0.08 A/0.04 A) Other than above: ±(0.7 % of reading +0.16 A/0.08 A) | 45 Hz to 65 Hz, DC: ±(0.5 % of reading +0.16 A/0.08 A) Other than above: ±(0.7 % of reading +0.32 A/0.16 A) | |
| Wattmeter | Resolution | 0.1W | 0.1W (<1 000 W), 1 W (1000 W≤) | |||
| Accuracy *18 | ±(2 % of reading +0.5 W) | ±(2 % of reading +1 W) | ±(2 % of reading +2 W) | ±(2 % of reading +4 W) | ||
*15 RMS, average (AVE), and power (W) are derived using the following equations.
RMS (true rms computation) = ( Σ (square of the instantaneous voltage or instantaneous current)/ the number of samples.)
AVE = (instantaneous voltage or instantaneous current)/the number of samples
WAC = Σ (instantaneous voltage x instantaneous current)/the number of samples
WDC = VAVG x IAVG
•Sample period: 100 ms to 125 ms for AC output (an integer multiple of the output waveform period. 125 ms for DC output.
•Update interval: Approx. 3 times/s, averaging over 2s when averaging is turned on.
•Peak current value holds the maximum value of the absolute value of the peak current for 0.3s or approximately 5s.
•The voltage display is set to RMS in AC mode and AVE in DC mode.
*16 AC mode: For an output voltage of 13.5 V to 155 V/27 V to 310 V and 23°C ± 5°C.
DC mode: For an output voltage of 19 V to 219 V/38 V to 438 V and 23°C ± 5°C.
*17 For waveforms with a crest factor of 3 or less. At 5 % to 100 % of the maximum rated current, 23°C ±5°C
*18 For an output voltage of 50 V or greater, an output current in the range of 10 % to 100 % of the maximum rated current, a load power factor of 1, an output frequency of 45 Hz to 65 Hz or DC, and 23°C ± 5°C.
Input rating
| Item/Model | PCR500MA | PCR1000MA | PCR2000MA | PCR4000MA | |
|---|---|---|---|---|---|
| AC input | Nominal input rating | 100 Vac to 120 Vac/200 Vac to 240 Vac, 50 Hz/60 Hz, single phase | |||
| Input voltage range | 90Vac to 132Vac/180Vac to 264Vac (auto detection at power-on) | ||||
| Input frequency range | 47 Hz to 63 Hz | ||||
| Apparent power | Approx. 800 VA | Approx. 1600 VA | Approx. 3200 VA | Approx. 6400 VA | |
| Power factor *19 | 0.9 (standard value) | ||||
| Current | Input 90 V to 115 V | 8 A/6.3 A or less | 16 A/12.5 A or less | 32 A/25 A or less | 64 A/50 A or less |
| Input 180 V to 230 V | 4 A/3.2 A or less | 8 A/6.3 A or less | 16 A/12.5 A or less | 32 A/25 A or less | |
*19. For an output voltage of 100 V/ 200 V (155 V/310 V range), maximum current, and a load power factor of 1.
General
| Item/Model | PCR500MA | PCR1000MA | PCR2000MA | PCR4000MA | |
|---|---|---|---|---|---|
| Insulation resistance | Between input and case, between output and case, between input and output | 500 Vdc, 30 MΩ or more | |||
| Withstanding voltage | Between input and case, between output and case, between input and output | 1.5 kVac for 1 minute | |||
| Earth continuity | 25 Aac/0.1 Ω or less | ||||
| Electromagnetic compatibility *1 *2 | Conforms to the requirements of the directive and standard below. EMC Directive 2014/30/EU EN 61326-1 (Class A), EN 55011 (Class A, Group 1), EN 61000-3-2, EN 61000-3-3 | ||||
| Applicable under the following conditions: Load cables are less than 30 m. Other cables connected to the product are all less than 3 m. | |||||
| Safety *1 | Conforms to the requirements of the directive and standard below. Low Voltage Directive 2014/35/EU EN 61010-1 (Class I, Pollution Degree 2) | ||||
| Circuit method | PWM inverter system | ||||
| Environment | Operating environment | Indoor use, overvoltage category II | |||
| Operating temperature and humidity range | 0°C to 40°C, 20 % to 80 %rh (no condensation) | ||||
| Storage temperature and humidity range | -10°C to 60°C, 0 % to 90 %rh (no condensation) | ||||
| Altitude | Up to 2000 m | ||||
| Dimensions | 214(8.43)W×124(4.88)H× 350(13.78)D mm(inches) | 429(16.89)W×128(5.04)H× 350(13.78)D mm(inches) | 429(16.89)W×128(5.04)H× 450(17.72)D mm(inches) | 429(16.89)W×262(10.31)H× 520(20.47) Dmm (inches) | |
| Weight | Approx. 6.5kg | Approx. 11kg | Approx. 16kg | Approx. 32kg | |
| Input terminal | (Inlet) | M4 terminal block | M6 terminal block | M6 terminal block | |
| Output terminal | M4 terminal block | M6 terminal block | |||
| Accessories | Power cord | 1 pc. with plug Length: Approx. 2.5 m | 1 pc. 3-core flexible cable Nominal cross-sectional area : 3.5 mm2 without plug Length: Approx. 3 m | 1 set with ferrite core 1-core cable : 3pcs. Nominal cross-sectional area : 5.5 mm2 without plug Length: Approx. 3 m | 1 set 1-core cable : 3pcs. Nominal cross-sectional area : 14 mm2 without plug Length: Approx. 3 m |
| Core | 1 pc. | 1 pc. | 1 pc. | 1 pc. | |
| Cable tie | 1 pc. | 1 pc. | 1 pc. | 1 pc. | |
| CD-ROM *3 | 1 disc | ||||
| Packing List(1 pc.), Quick Reference(Japanese 1 sheet, English 1 sheet), Safety Information(1 copy) | |||||
*1 Not applicable to custom order models. *2 Only on models that have the CE marking on the panel. *3 Included in the user’s manual, and communication interface manual.
Analog interface specifications (EX08-PCR-MA: optional)
| Input terminal | Maximum allowable input voltage | ±15 V | |
|---|---|---|---|
| Type | BNC | ||
| Input impedance | 10 kΩ ±5 % (unbalanced) | ||
| Isolation voltage | 42 Vpk | ||
| EXT-AC mode *1 | Input voltage range | 0 V to ±10 V (DC) | |
| Voltage amplification rate (155 V/310 V range) | 15.5 times or 31 times | ||
| Frequency setting range | 40 Hz to 500 Hz | ||
| EXT-DC mode | Input voltage range *2 | ATT OFF | 0 V to ±2.19 Vpeak (0 to 155 Vrms sine wave) |
| ATT ON | 0 V to ±10 V (DC) | ||
| Input frequency range | ATT OFF | 40 Hz to 500 Hz (sine wave) / 40 Hz to 100 Hz (square wave) /DC | |
| Frequency characteristics | ATT OFF | -0.3 dB at 500 Hz (typical value) with 55 Hz as a reference | |
| Voltage amplification rate (155 V/310 V range) | ATT OFF | 100 times or 200 times | |
| ATT ON | 21.9 times or 43.8 times | ||
| Output voltage distortion ratio *3 | Main unit specifications + 0.5 % or less | ||
*1 ATT is always set to on. *2 Measurable range for voltage, current and power is DC and from 40 Hz to 500 Hz. The frequency is set based on the input waveform cycle*3 In the EXT-AC mode, when direct current is input. In the EXT-DC mode, when a sine wave with [IB22] [EX08-PCR-MA] [IB22] Analog interface board [EX08-PCR-MA] 0.1 % or less distortion rate is input.
Specifications of the communication interfacen
| LAN | Complies with IEEE 802.3 100base-TX/10Base-T Ethernet 1.5 LXI Device Specification 2016, RJ-45 connector |
|---|---|
| USB | Complies with the USB 2.0 specifications. Communication speed: 480 Mbps (High-speed) Complies with the USBTMC-USB488 device class specifications. |
| GPIB (IB22: optional) | Complies with IEEE STD. 488.1-1978 specifications. SH1, AH1,T6, L4, SR1, RL1, PP0, DC1, DT1, C0, E1 |
| Common specifications | Software protocol: IEEE 488.2 STD 1992 Command language: SCPI Specification 1999.0 |
Options
GPIB interface board
Analog interface board
LAN-RS232C Converter Introduction
XDT2321002-01-S xDirect232 Ver. RS232C (AC Adapter Included)/(LAN-RS232C Converter)
https://www.lantronix.com/products/xdirect/
[Notes] *Please refer to the LANTRONIX Corporation instruction manual for details on RS232C control using the LAN-RS232C converter. *We can not guarantee compatibility with your computer, etc.
Rack-mount frames and brackets
For PCR500MA
For PCR1000MA / PCR2000MA
For PCR4000MA
Sequence creation software
Use of PCR-M series compatible mode switching function (limited)
