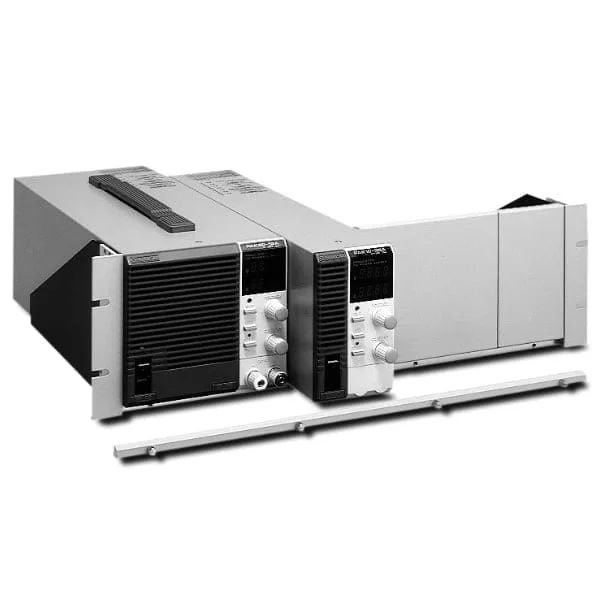

List of products to be assembled using rack mount frame
*When PIA4800 and PIA3200 power supply controller are rank-mounted together with the power supply, the rank mount frame and rack adaptor are necessary to be added depending on the series of the connected power supply.
Product name
Series
Type
Width
Rack adaptor model No.
For millimeter (JIS)
For inch (EIA)
Panel width (*1)
DC power supply
PAK-A
I
1/6
KRA150
KRA3
3
II
1/3
III
1/2
PAS
I
1/6
KRA150
KRA3
II
1/3
III
1/2
PAV
1/6
KRA2-PAV
2
PWR
400
1/4
KRA150
KRA3
3
800
1/2
PWR-01
400
1/6
KRA150
KRA3
3
800
1/3
1200
1/2
PWX
750
1/2
1 unit : KRA1-PWX HALF SINGLE (*4)
1
1 unit : KRA1-PWX HALF PAIR (*4)
PMX-A
1/4
KRA150
KRA3
3
PMX-Multi
1/2
PMC
1/4
KRA150 (*3)
KRA3 (*3)
PMC-A
1/4
PMP
1/3
KRA150 (*2)
KRA3 (*2)
PMR
1/3
PMM
1/3
AC power supply
PCR500M
1/2
KRA150
KRA3
PCR500MA
1/2
Electronic Load
PLZ-5W
200
1/2
KRA150
KRA3
400
PLZ-4W(H)
I
1/2
PLZ-3WH
I
1/2
Controller
PIA3200
1/6
KRA150 (*3)
KRA3 (*3)
PIA4810/4820
1/3
PIA4830
1/6
KRA150
KRA3
*1 EIA panel width is 44.45 mm (1 3/4 inch). The panel width does not include the rubber feet, casters, and levelers.
*2 Since there are force-aid cooling intake holes in the side or top and bottom of the mainframe, when mounting in the rack, the blank panel at least 1 panel wide must be installed.
*3 Since those applied models were designed for the type of "Natural Cooling" unit, so it is required to have countermeasure for enough radiation of the heat when used with rack mounting system.
*4 When stacking the PWX series, the special support angle (KRB1-PWX SUPPORT ANGLE) must be purchased separately.
