Panel explanation / External control function

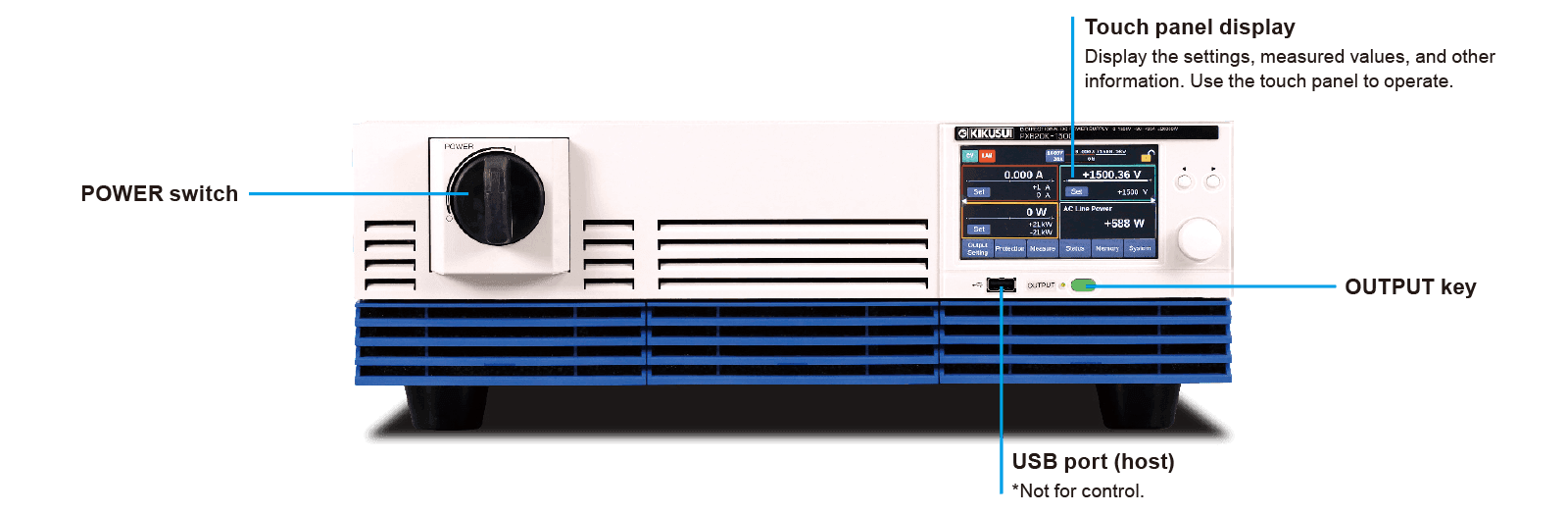

Front Panel

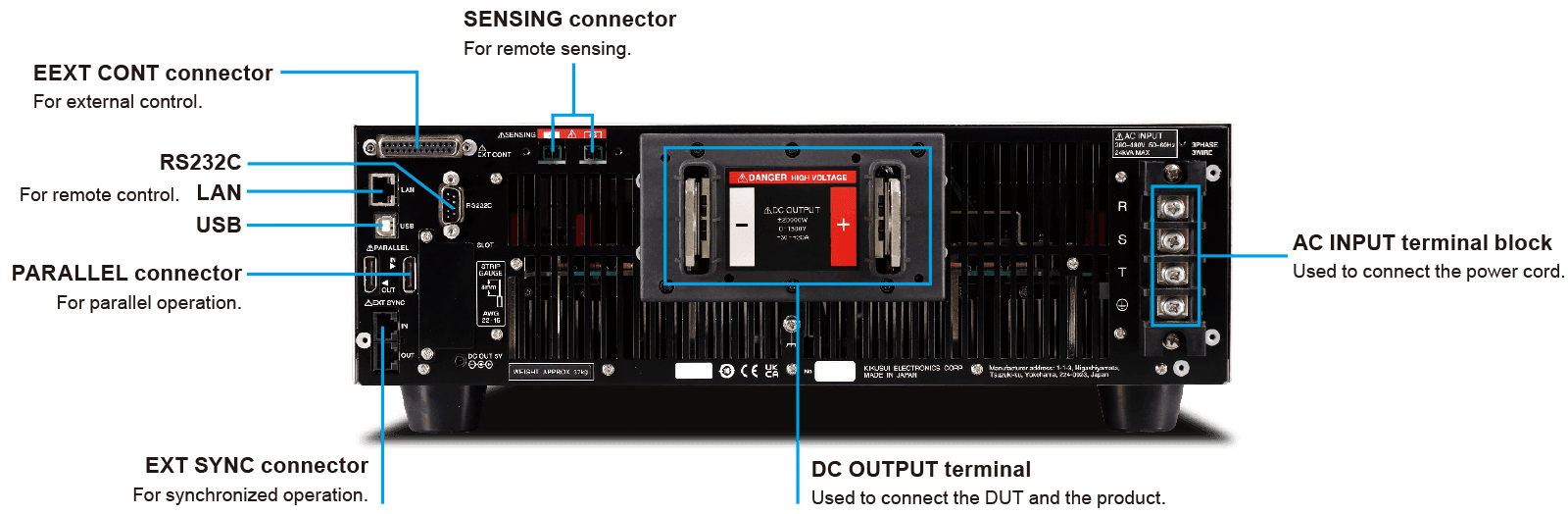

Rear Panel

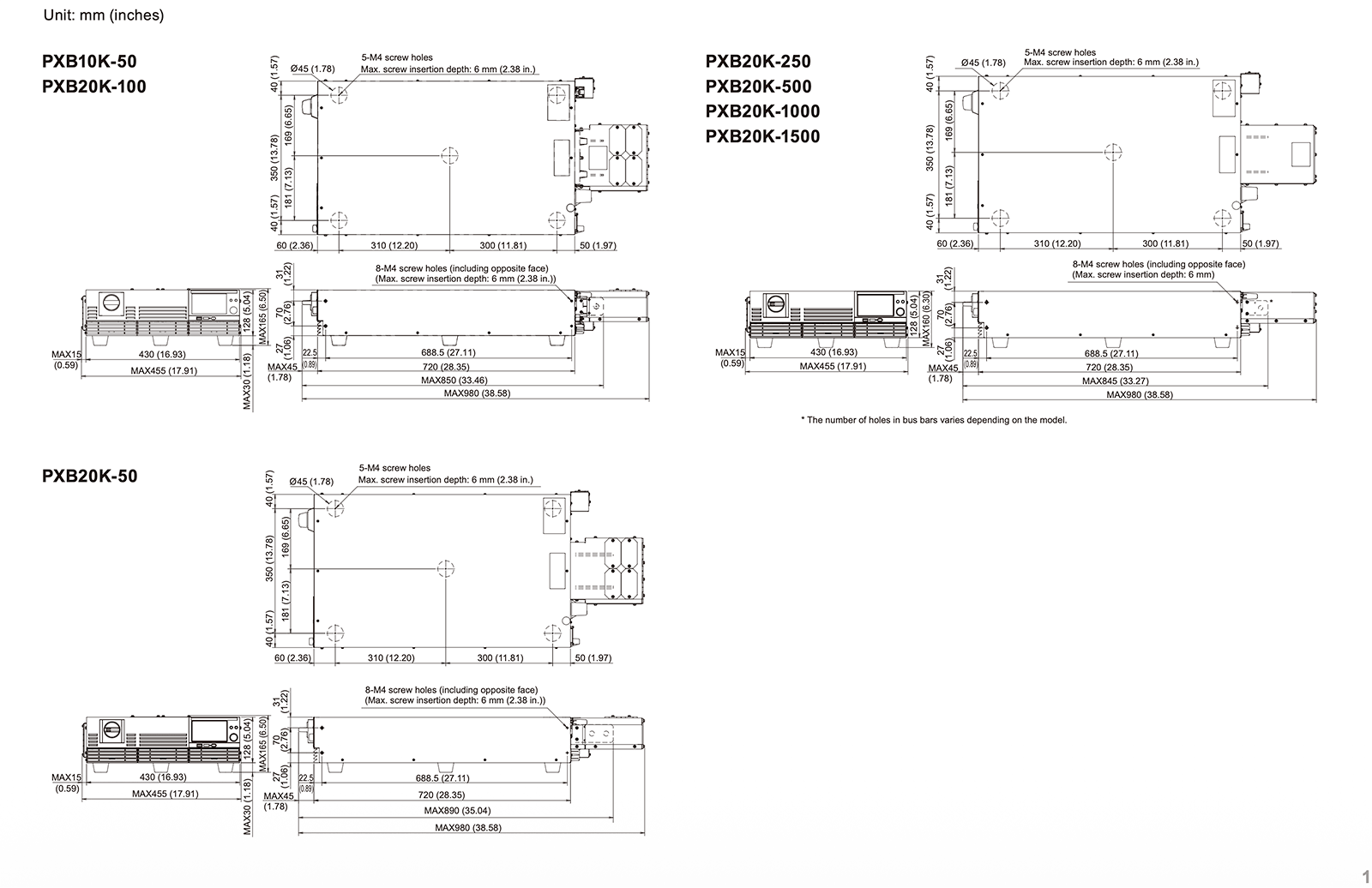

Dimensions Note: Maximum dimensions include protrusions and accessory covers.
Embedded Web
The PXB series is a bidirectional DC power supply that can be connected via a LAN interface, allowing you to configure output settings such as voltage and current, as well as turn Output ON/OFF, directly from a web browser. The unit’s front panel is displayed on a PC or tablet, enabling remote operation with the same feel as operating the unit directly.
External Control
Control is performed via the EXT-CONT connector on the rear of the unit.
It consists of 4 analog I/O ports and 12 digital I/O ports.
The digital I/O ports are general-purpose ports, and any function can be assigned to them from the operation panel.
Digital Input Function Settings
Digital Output Function Settings
Digital Input/Output Logic Settings
External Control Interface (EXT-CONT)
Uses the D-Sub 25-pin connector on the rear panel.
Open in a new window
| Terminal No. | Method | I/O | Name | Description |
|---|---|---|---|---|
| 1 | Digital | O | OUT Ch.1 | General-purpose output terminal |
| 2 | Digital | O | OUT Ch.2 | General-purpose output terminal |
| 3 | Digital | O | OUT Ch.3 | General-purpose output terminal |
| 4 | – | – | DO COM | Digital output common |
| 5 | – | – | DI COM | Digital input common |
| 6 | Digital | I | IN Ch.1 | General-purpose input terminal |
| 7 | Digital | I | IN Ch.2 | General-purpose input terminal |
| 8 | Digital | I | IN Ch.3 | General-purpose input terminal |
| 9 | – | O | +12V OUT | 12 V reference voltage available for digital input |
| 10 | – | – | – | Not used |
| 11 | – | – | A COM | Analog signal common |
| 12 | Analog | O | VMON | Voltage monitor |
| 13 | Analog | O | Range status output | Current monitor |
| 14 | Digital | O | OUT Ch.4 | General-purpose output terminal |
| 15 | Digital | O | OUT Ch.5 | General-purpose output terminal |
| 16 | Digital | O | OUT Ch.6 | General-purpose output terminal |
| 17 | – | – | DO COM | Digital output common |
| 18 | – | – | DI COM | Digital input common |
| 19 | Digital | I | IN Ch.4 | General-purpose input terminal |
| 20 | Digital | I | IN Ch.5 | General-purpose input terminal |
| 21 | Digital | I | H ALARM IN | HIGH alarm EXT HIGH occurrence |
| 22 | – | – | 12V COM | 12 V reference voltage common |
| 23 | – | – | A COM | Analog signal common |
| 24 | Analog | I | EXT CV | Voltage control in the constant voltage mode |
| 25 | Analog | I | EXT CC/CP | Current control in the constant current / power modes |
