AC Power Supply Guide: Selection, Specifications, and Modern Test Applications (Grid Simulation, V2G, & Avionics)

Introduction

While the Direct Current (DC) power supply is often the first instrument an engineer encounters, the AC Power Supply (Programmable AC Source) is equally critical, particularly for validating product safety, compliance, and global usability.

The electricity delivered from a wall outlet (the utility grid) is inherently “dirty” and uncontrolled. It fluctuates in voltage, contains harmonic distortion, and is fixed to a specific frequency (50 Hz or 60 Hz) depending on the region. For engineers designing products for the global market—or those requiring precision testing—relying on the utility grid is insufficient.

A regulated AC power supply acts as a clean and tightly controlled generator, producing a stable waveform independent of grid conditions. It allows engineers to simulate power grids from any country, test resilience against power anomalies, and measure power consumption with high precision.

Session 1: Understanding AC Power and the Need for Regulation

The Nature of Alternating Current (AC)

Unlike DC, where current flows in a single direction, AC periodically reverses direction. The standard waveform is a sine wave, defined by its Amplitude (Voltage) and Frequency (Hz).

Global Variance

A device designed for Japan (100 V / 50-60 Hz) may fail if plugged into a European outlet (230 V / 50 Hz) or used on an aircraft (115 V / 400 Hz).

Grid Instability

Real-world power lines suffer from voltage dips (brownouts), surges, and frequency drift.

Why Use a Programmable AC Power Supply?

An AC power supply isolates the Device Under Test (DUT) from the utility grid and reconstructs a new power waveform. This provides three main benefits:

• Frequency and Voltage Conversion: It can generate any combination of voltage (e.g., 0 V to 300 V) and frequency (e.g., 40 Hz to 1000 Hz), enabling global adaptability testing.
• Power Line Disturbance Simulation: It can intentionally generate “bad” power—such as instantaneous interruptions or voltage spikes—to verify that the DUT handles errors gracefully without safety hazards.
• Clean Power Source: It removes the harmonic noise present in the wall outlet, ensuring that sensitive measurements (like standby power) are accurate and not affected by external grid quality.

Session 2: Types of AC Power Supplies – Architecture & Operating Principles

Just as with DC supplies, the internal architecture of an AC power supply dictates its performance, size, and application suitability. The two dominant technologies are Linear Amplification and PWM Switching.

1. Linear Amplifier Type (Linear / Series Regulator)

This architecture functions similarly to a high-fidelity audio power amplifier.

• How it works: It uses power transistors operating in their active region to amplify a reference sine wave signal. The output is a pure analog reconstruction of the reference.
• Advantages:
  • Ultra-Low Noise: Generates virtually no conducted or radiated noise (EMI), making it ideal for anechoic chambers.
  • Fast Transient Response: Can react to load changes almost instantly (< 10 µs), maintaining a perfect waveform even with non-linear loads.
  • Low Harmonic Distortion (THD): Produces a near-perfect sine wave (THD < 0.2%).
• Disadvantages:
  • Efficiency: Very low (often < 50%), as excess energy is dissipated as heat.
  • Size/Weight: Requires large transformers and heat sinks. A 1 kVA unit can weigh over 20 kg.
• Ideal Applications: EMC compliance testing, noise-sensitive sensor testing, and calibration standards.
• Kikusui Example: PCR-LE Series.

2. PWM Inverter Type (Switch Mode)

This architecture uses high-speed switching technology, similar to a Class D amplifier or a modern motor drive.

• How it works: It rectifies the input AC to a high-voltage DC bus, then “chops” this DC voltage at a high frequency (tens of kHz) using IGBTs or MOSFETs. An output filter smooths these pulses back into a sine wave.
• Advantages:
  • High Efficiency: Typically > 80-85%, resulting in cooler operation.
  • Compact High Power: Can deliver huge power (e.g., 6 kVA) in a small rack-mount size (6U), whereas a linear equivalent would be the size of a refrigerator.
• Disadvantages:
  • Switching Noise: Contains high-frequency switching residue, though modern filtering significantly reduces this, making it suitable for most general applications.
  • Response Bandwidth: Generally narrower than linear types due to output filtering, but modern PWM architectures still provide sufficient response for most industrial and appliance tests.
• Ideal Applications: EV chargers, motors, home appliances, server power supplies, and facility power.
• Kikusui Example: PCR-WEA2 Series.

Session 3: Key Specifications Every Engineer Should Know

Selecting an AC power supply requires understanding specifications that are fundamentally different from DC supplies.

1. Output Capacity (VA) vs. Real Power (W)

AC sources are rated in Volt-Amperes (VA), known as Apparent Power.

• The Power Factor (PF) Trap: If your DUT has a poor power factor (e.g., 0.6), a 1000 W device will draw approx. 1666 VA. You must size the AC power supply based on VA, not just Watts.
• Derating: Unlike DC supplies, many AC sources have a specific voltage range where they deliver full power. Operating at the lower end of a voltage range often reduces the available current.

2. Peak Current and Crest Factor

Many electronic devices use “capacitor-input” power supplies (like PC or TV power supplies). These draw current only at the peak of the voltage sine wave.

• Crest Factor (CF): The ratio of Peak Current to RMS Current. A pure resistive load has a CF of 1.41. A switching power supply often has a CF of 3 to 4.
• Why it matters: If the AC source cannot supply this high instantaneous peak current, the output voltage waveform will “flat-top” (distort), causing the DUT to malfunction or fail testing. A good AC source typically supports a Crest Factor of 3 or higher.

3. Total Harmonic Distortion (THD)

This measures the purity of the output sine wave. A high THD means the waveform is distorted.

• For compliance testing (IEC 61000-3-2), the source itself must have extremely low distortion (typically < 0.5%) so that it doesn’t introduce errors into the harmonic current measurement of the DUT.

4. Response Time / Slew Rate

This defines how quickly the power supply can change its voltage or stabilize after a sudden load change. Faster response times are critical for simulating sub-cycle power dropouts.

Session 4: Advanced Features for Modern Testing

Modern AC power supplies like Kikusui’s PCR series are not just “sources”; they are complex waveform generators and analyzers.

1. Power Line Simulation (Sequence Mode)

Engineers often need to test how a device behaves during power abnormalities. Advanced AC sources can programmatically generate:

• Voltage Dips: Reducing voltage to 70% for 500ms.
• Pop-ups: Sudden voltage spikes.
• Short Interruptions: Simulating a momentary blackout. This is crucial for testing “Ride-Through” capabilities in servers and industrial equipment.

2. Measurements and Analysis

Instead of connecting an external power analyzer, high-end AC sources have built-in measurement functions:

• Standard metrics: V_rms, I_rms, W, VA, var, Power Factor (PF).
• Advanced metrics: Peak Hold current, Harmonic analysis (up to the 40th order) to check for grid pollution caused by the DUT.

3. Regeneration (Bi-directional Power)

This is the cutting edge of AC power technology.

• The Problem: When testing grid-tied inverters (like PV inverters) or Vehicle-to-Home (V2H) systems, energy flows from the DUT back to the power supply. A standard supply cannot absorb this and will trip with an over-voltage error.
• The Solution: A Regenerative AC Power Supply (like the PCR-WEA2) can sink this reverse power and “recycle” it back to the building grid. This enables the testing of energy generators and V2G (Vehicle-to-Grid) technologies without needing massive resistive load banks to burn off the energy.

4. Programmable Output Impedance (Simulating “Weak” Grids)

In the real world, the power grid is not an infinite source; it has impedance (resistance and inductance). In rural areas or at the end of long distribution lines, connecting a heavy load causes the voltage to drop significantly. High-end AC power supplies allow engineers to digitally add “Virtual Impedance” to the output. This allows you to simulate:

• Rural Grids: Testing how PV inverters behave when connected to weak infrastructure.
• Generator Power: Simulating the softer response of a backup diesel generator compared to the main utility grid.

Session 5: Kikusui’s Product Lineup and Technical Advantages

Kikusui Electronics offers a comprehensive portfolio of AC power supplies, ranging from compact benchtop units to megawatt-class industrial systems. The lineup is distinctly categorized by architecture (PWM vs. Linear) and application focus, allowing engineers to select the optimal balance between power density, precision, and cost.

Below is an in-depth technical analysis of the three key series: PCR-WEA/WEA2, PCR-LE/LE2, and PCR-MA.

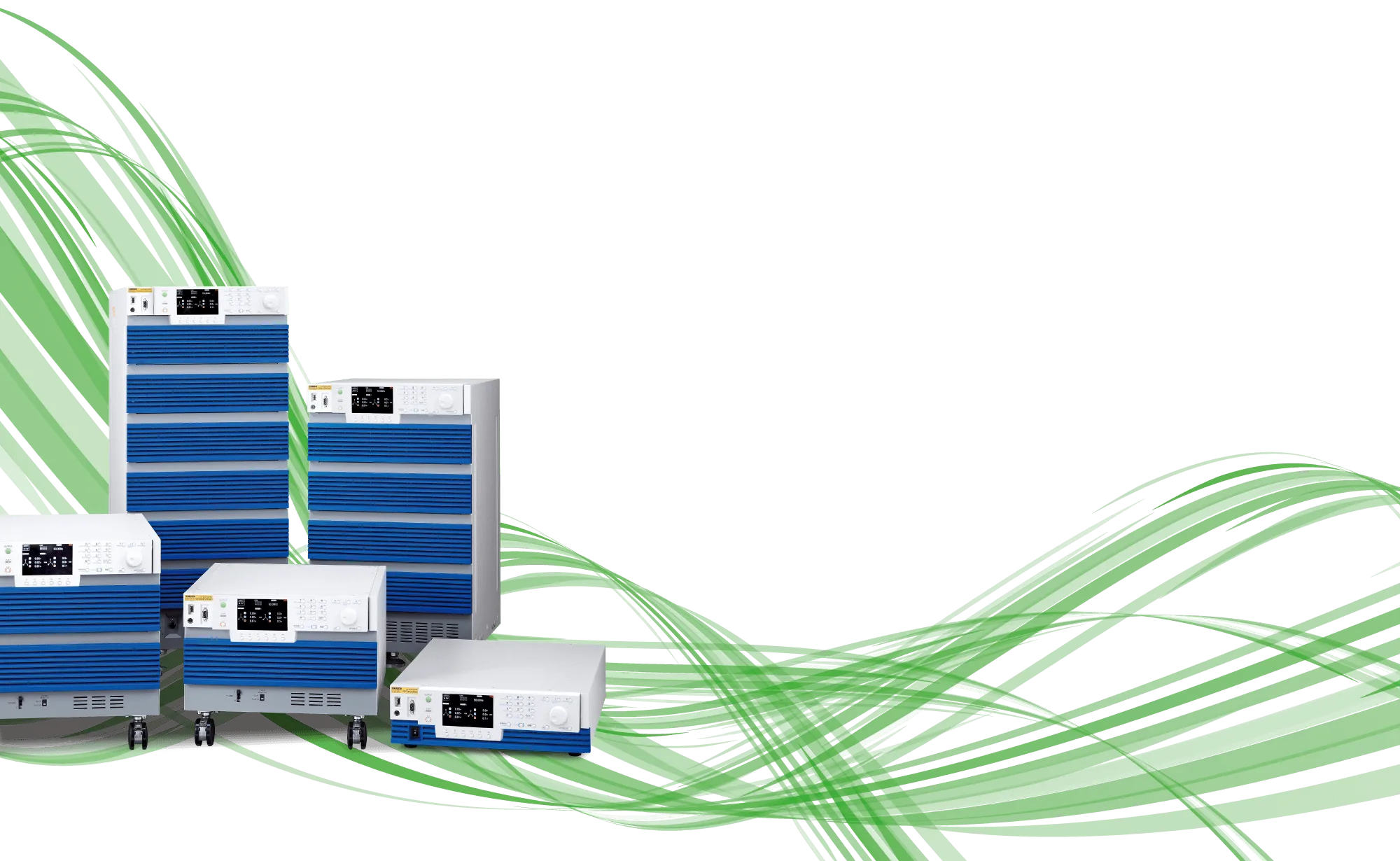

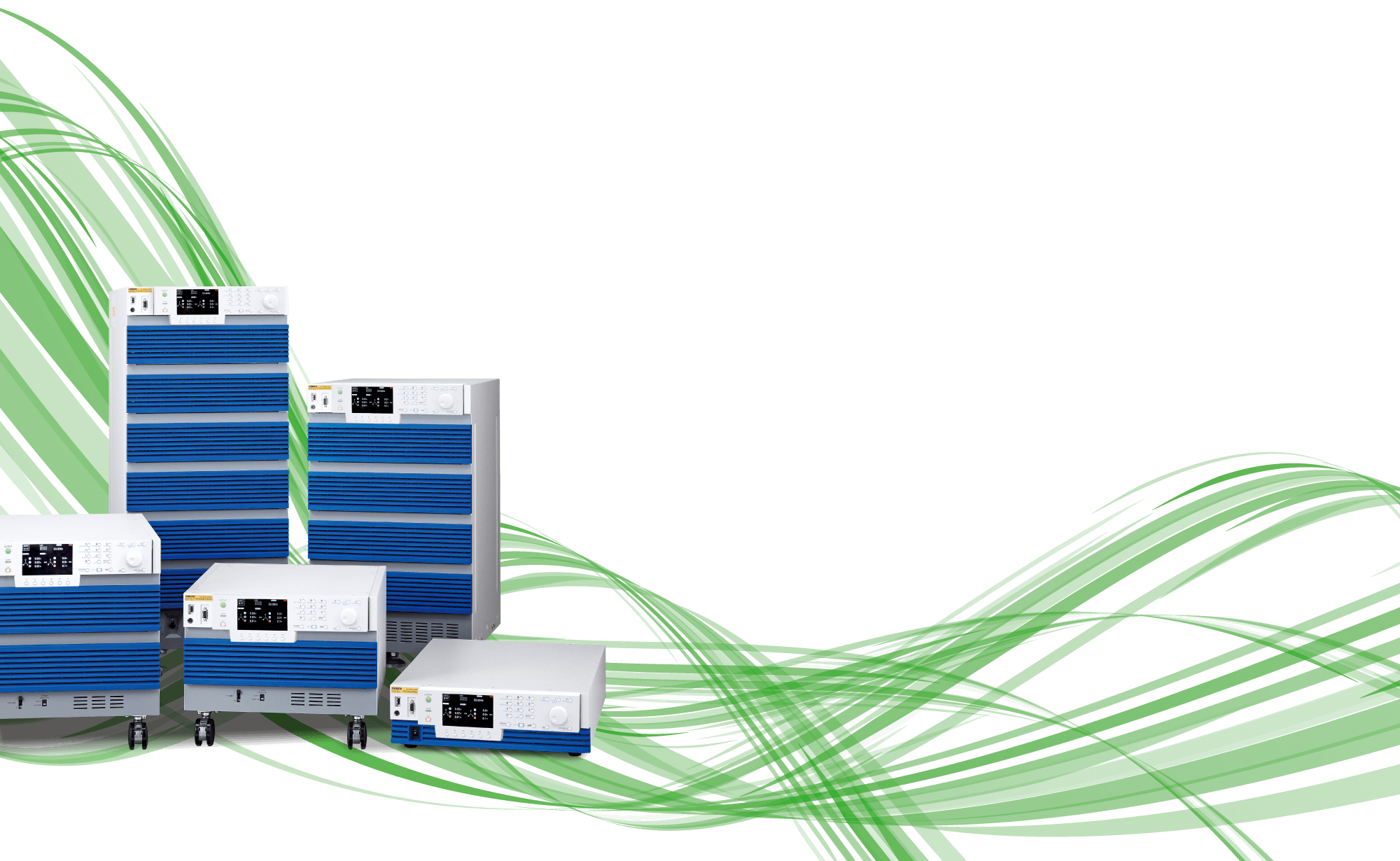

1. PCR-WEA/WEA2 Series – Ultra-Compact High-Power PWM AC/DC Source

The New Standard for Power Density and Regeneration

• Architecture: PWM Inverter (Switching)
• Power Range: 1 kVA to 36 kVA (single unit) / Scalable up to 540 kVA+ in parallel
• Output Modes: AC, DC, AC+DC
• Frequency: 1 Hz to 5,000 Hz

Key Technical Advantages:

• Extreme Power Density: Traditional 6 kVA AC sources are often the size of a small refrigerator. The PCR-WEA2 delivers up to 6 kVA per 6U unit, and higher power systems such as 18 kVA or 36 kVA are built by stacking multiple units within a rack.
• 100% Regenerative Capability (WEA2R Models): This is a game-changer for testing energy-generating devices (like PV inverters) or bidirectional EV chargers (V2H/V2G). The “R” models can sink 100% of their rated power and return it to the facility grid with up to 85% efficiency. This eliminates the need for external resistive load banks and significantly reduces facility cooling costs.
• Wide Frequency for Avionics & Motors: With a maximum frequency of 5 kHz, this series can directly test avionics equipment (typically 400–800 Hz) and drive high-speed AC motors (up to 20,000 rpm) used in modern EVs and drones.
• Mix-and-Match Phases: High-capacity models (3 kVA and above) can be software-configured to output Single-phase, Single-phase 3-wire, or Three-phase power. This flexibility allows one unit to test a wide variety of regional appliances and industrial equipment.

Best For: EV On-Board Chargers (OBC), Vehicle-to-Grid (V2G) testing, Server/Data Center power validation, Commercial air conditioning, Avionics, and large-scale industrial motor testing.

2. PCR-LE/LE2 Series – High-Performance Linear AC Source

The Reference Standard for Precision and EMC Compliance

• Architecture: Linear Amplifier (Series Regulator)
• Power Range: 500 VA to 9 kVA (single unit) / Scalable up to 27 kVA+
• Output Modes: AC, DC, AC+DC
• Frequency: 1 Hz to 999.9 Hz

Key Technical Advantages:

• Ultra-Low Noise & Distortion: Delivers a pure sine wave with THD (Total Harmonic Distortion) as low as 0.1%. It generates virtually no conducted EMI (Electromagnetic Interference), making it the only suitable choice for anechoic chambers and testing sensitive medical sensors.
• Superior Transient Response: The linear design allows for high-speed response (approx. 20 µs). It maintains a stable waveform even when the load current changes abruptly, which is critical for IEC 61000-3-2 (Harmonic Current) and IEC 61000-4-11 (Voltage Dip) compliance testing.
• High Peak Current Handling: It can supply instantaneous peak currents up to 4 times the rated RMS current. This is vital for testing devices with capacitor-input power supplies (like PCs and TVs) that draw massive inrush currents at startup.
• Multi-Phase Flexibility: The PCR-LE is highly modular. By combining units with interface cards, you can build a system that switches between Single-phase and Three-phase operation, or even expands capacity later as your testing needs grow.

Best For: EMC/EMI compliance testing, Anechoic chamber power, Medical equipment testing, R&D of precision electronics, and “Gold Standard” reference applications.

3. PCR-MA Series – Compact AC Power Supply

Benchtop Efficiency for Every Engineer

• Architecture: PWM Inverter
• Power Range: 500 VA to 4000 VA
• Output Modes: AC, DC
• Frequency: 40 Hz to 500 Hz

Key Technical Advantages:

• Space-Saving Design: Designed specifically for the workbench. The 1000 VA model is small enough to carry with one hand, yet powerful enough to run most household appliances.
• High Peak Current (3x Rating): Despite its size, it supports a crest factor of 3, ensuring it can drive rectifying loads (switching power supplies) without waveform distortion.
• Built-in Digital Interfaces: Unlike many competitors that charge extra for connectivity, the PCR-MA comes standard with LAN (LXI) and USB. This makes it incredibly easy to integrate into automated test rigs or control via a web browser without installing drivers.
• Cost-Effective Performance: It provides the essential quality of a regulated AC source—stabilized voltage and frequency—at a price point accessible for general production lines and educational labs.

Best For: Production line testing, Basic R&D, Quality Assurance (QA), and automated test systems where space and budget are key constraints.

Session 6: Application Scenarios & Real-World Test Parameters

AC power supplies serve as the backbone for validating any device connected to the utility grid. As electrical infrastructure becomes more complex, the role of these instruments has shifted from simple power sources to sophisticated grid simulators capable of replicating specific, often extreme, real-world conditions. Below are the critical testing scenarios driving the industry today.

1. Renewable Energy: PV Inverter (PCS) Grid Connection Testing

As distributed energy resources expand, Solar Inverters (PCS) and Energy Storage Systems (ESS) are no longer passive devices; they must actively interact with the commercial power grid. This requirement creates a complex validation challenge known as Grid Interconnection Testing. Engineers must verify two opposing safety functions: “Fault Ride Through” (FRT) and “Anti-Islanding.”

To test FRT (or Low Voltage Ride Through), engineers use the AC power supply as a programmable Grid Simulator. The test involves simulating a lightning strike or grid fault by instantaneously dropping the output voltage—typically to 50% or even 0%—for a duration of 0.1 to 2.0 seconds. The inverter must prove it can “ride through” this dip without disconnecting, thereby supporting grid stability. Conversely, for Anti-Islanding tests, the power supply simulates a complete blackout or frequency drift (e.g., sweeping from 59.3 Hz to 60.5 Hz). Under these conditions, the inverter must detect the anomaly and disconnect within seconds. High-performance regenerative sources, like the Kikusui PCR-WEA2, are essential here, as they can absorb the power generated by the inverter during these tests and recycle it, allowing for continuous, energy-efficient validation.

2. Vehicle-to-Grid (V2G) & Bi-directional EV Charging

Vehicle-to-Grid (V2G) technology transforms Electric Vehicles from simple loads into mobile energy storage units capable of stabilizing the power grid. This evolution requires On-Board Chargers (OBC) and EVSE infrastructure to handle bi-directional power flow, switching seamlessly between charging the battery and discharging energy back to the grid.

Standard AC power supplies cannot absorb energy and will fail if current is forced back into them. The solution lies in Regenerative Bi-directional AC Power Supplies. In a typical V2G test scenario, the AC source (acting as the grid) must source power to charge the vehicle at 200–240V, and then immediately switch to sinking mode to absorb power during the vehicle’s discharge cycle. Engineers often program long-duration cycle tests that alternate between sourcing and sinking 6kW every 15 minutes to stress-test the OBC’s thermal management. Furthermore, to validate the robustness of the V2G logic, the AC source will inject harmonic distortion (THD 3–5%) or frequency fluctuations during the discharge phase, verifying that the EV intelligently stops discharging when grid quality degrades, as required by standards such as IEEE 1547 or UL 1741 SB, while ISO 15118 governs the communication layer.

3. AI Data Center: Server PSU & UPS Validation

Generative AI server racks, such as those based on NVIDIA NVL72 or OCP architectures, operate at extreme power densities where downtime is unacceptable. The Power Supply Units (PSUs) powering these racks must maintain “Titanium” level efficiency while surviving the unstable transition periods between utility power loss and backup generator activation.

Validation in this sector focuses heavily on “Hold-up Time” and global voltage compatibility. Engineers use the AC power supply to perform precise “AC Input Disturbance Tests,” where the power is cut at specific phase angles (e.g., 90° peak) for durations of 10ms, 20ms, or 100ms. The goal is to verify that the server’s internal capacitors can sustain the GPU cluster’s operation during these gaps without a reboot. Additionally, because these servers are deployed globally, PSUs are rigorously tested across a wide voltage margin—from a low of 90V to a high of 264V—and at frequencies of 47 Hz and 63 Hz.

4. Avionics & Defense (Aerospace Power Systems)

Aerospace electrical systems prioritize lightweight configurations and high reliability. Most avionics equipment operates from 115 Vrms (L-N) / 200 Vrms (L-L) at 400 Hz, but during engine acceleration, the bus frequency may sweep unpredictably between 360 Hz and 800 Hz—a phenomenon known as Wild Frequency.

Validating avionics equipment requires reproducing these extreme environments accurately as defined in MIL-STD-704F (military) and RTCA DO-160G (civil aviation).

For these mission-critical applications, the Kikusui PCR-WEA2 Series has become the modern standard. Historically, testing aircraft actuators and power systems required massive, room-sized equipment. The PCR-WEA2 delivers high power (up to 36kVA+) in a compact 6U rack size with a frequency range up to 5 kHz. This allows engineers to easily perform required frequency sweeps and voltage modulation tests without the bulk of legacy linear systems.

5. EMC Compliance & Anechoic Chamber Testing

For certain specialized tests, “power” is less important than “purity.” In Anechoic Chambers (for measuring radiated noise) or during Harmonic Current Compliance Testing (IEC 61000-3-2), the AC power source itself must not introduce any electrical noise or distortion into the measurement environment. In these ultra-sensitive scenarios, Switching (PWM) power supplies are often unsuitable due to their inherent switching ripple. This is where Linear Amplifier AC Power Supplies—specifically the Kikusui PCR-LE Series—are indispensable. The PCR-LE functions like a massive high-fidelity audio amplifier, generating a pure analog sine wave with very low conducted and radiated noise, suitable for EMC and anechoic chamber applications. It is widely used as a “Reference Source” for certifying medical equipment, calibrating sensitive sensors, and performing rigorous EMC evaluations where signal integrity is paramount.

6. Global Appliance Export: Inrush & Motor Testing

Manufacturers developing appliances for worldwide markets must ensure reliable operation across regions with weak or unstable electrical infrastructure. One of the biggest challenges is Inrush Current; at startup, a compressor may momentarily draw 5–10× the rated current, causing significant voltage sag when connected to a weak grid.

To replicate real-world worst-case environments, engineers use AC power supplies to create Low-Voltage Start-up conditions—for example, powering a 220 V appliance at −15% nominal voltage (187 V). The AC source must support a high Crest Factor to supply the large peak currents without collapsing.

For production lines and QA benches where space is limited, compact AC sources like the Kikusui PCR-MA Series are the industry standard. Despite their small footprint, they support a high Crest Factor (3–4), enabling reliable testing of motors and switching power supplies. This rigorous testing ensures that consumer appliances will operate reliably—whether installed in a modern apartment in Tokyo or a rural home with unstable power in Southeast Asia.

7. Pro Audio & Live Performance: The Ultimate “Clean Power”

While usually found in test labs, Kikusui’s AC power supplies—specifically the compact PCR-MA Series—have found a cult following among professional musicians, touring bands, and recording engineers.

Live venues and concert halls often have “dirty” power, plagued by voltage fluctuations and noise generated by stage lighting and dimmers. For high-end tube amplifiers and vintage synthesizers, even a slight voltage drop can alter the tone, and power line noise can ruin a recording.

Musicians use the PCR-MA not for testing, but as an active power regenerator. By converting the venue’s unstable AC into DC and then reconstructing a pure, stable AC sine wave, the PCR-MA ensures the equipment receives exactly the voltage it was designed for (e.g., precisely 100V for Japanese vintage gear or 117V for classic US amps). Unlike heavy industrial units, the PCR-MA is compact enough to fit in a touring rack, ensuring consistent sound quality regardless of the venue’s electrical conditions.

Session 7: Selection Guide and FAQ

How to Select the Right AC Power Supply

• Determine the DUT’s Input:
  • Is it Single-phase or 3-phase?
  • What is the maximum peak current (Inrush current)? (Ensure the source’s Peak Current rating > DUT’s Inrush).
• Determine the Application Type:
  • General Functional Test / Motor / Heater: Go with PWM (PCR-WEA/MA). It’s smaller and cheaper per watt.
  • EMC / Precision Lab / Reference: Go with Linear (PCR-LE).
• Check the Frequency:
  • Need 400 Hz or 800 Hz? Most Kikusui models support this, but verify the upper limit.
• Do you need Reverse Power Flow?
  • Testing inverters or Grid-tied devices? You must use a Regenerative model (PCR-WEA2).

Expanded FAQ for Engineers

Q1: Can I use an AC Power Supply to output DC?

A: Yes. Advanced models like the PCR-LE and PCR-WEA Series support AC, DC, and AC+DC modes. The AC+DC mode is particularly useful for simulating “DC offset” on power lines or testing electronics that are sensitive to DC bias superimposed on the AC grid.

Q2: My device has a huge Inrush Current at startup. Will the power supply trip?

A: It depends on the “Peak Current Capability” of the supply. A standard 10A supply might trip if the device pulls a 30A spike. However, Kikusui AC sources (like the PCR-MA and WEA) are designed with a high Crest Factor (CF > 3), meaning they can deliver up to 3-4 times their rated RMS current for a short duration to handle these inrush spikes without tripping the Over Current Protection (OCP).

Q3: Can I use a single unit for both Single-phase and Three-phase testing?

A: Yes, with the right model. The PCR-WEA2 Series (models 3kVA and larger) and PCR-LE Series (with specific configurations) allow you to switch the output mode between Single-phase, Single-phase 3-wire, and Three-phase via software settings. This flexibility is a massive cost-saver for labs that test diverse products.

Q4: What is “Remote Sensing” and do I need it?

A: Remote Sensing compensates for the voltage drop that occurs in the cables between the power supply and the DUT. For example, if you set 100V but your cable has resistance, the DUT might only receive 98V. Remote Sensing measures the voltage at the DUT terminals and automatically adjusts the output (e.g., to 102V) to ensure the DUT receives exactly 100V. It is highly recommended for precision testing or when using long cables.

Q5: Why is the AC power supply making a “clicking” sound?

A: This is normal operation. High-performance AC sources use internal mechanical relays to switch between voltage ranges (e.g., “L Range” for 0-150V and “H Range” for 0-300V) to maximize resolution and accuracy. The clicking sound occurs when the unit automatically (or manually) switches ranges to match your setting.

Q6: What is the difference between “Current Limit” and “Peak Current Limit”?

A:

• RMS Current Limit: Protects against long-term overheating. It triggers if the device draws too much continuous power.
• Peak Current Limit: Protects against instantaneous short circuits or excessive inrush spikes that could damage the power supply’s internal amplifier/inverter. Kikusui supplies allow you to set these limits independently to fine-tune protection for your specific DUT.

Q7: Do I need special software to control these units?

A: No, but it helps. All Kikusui AC sources come with standard drivers (IVI-COM, LabVIEW) for automation. Additionally, the PCR-WEA2 and PCR-MA have a built-in Web Interface, allowing you to control and monitor the unit directly from a Chrome or Edge browser on your laptop without installing any software. For complex sequencing (e.g., creating a voltage dip profile), Kikusui provides dedicated “Wavy” sequence creation software.

Q8: Can I test motors that generate Back EMF (regenerative energy)?

A: Be careful. When a motor spins down or brakes, it acts as a generator and pushes energy back to the power supply. A standard supply cannot absorb this and will trip with an Over-Voltage (OVP) error. For motor testing, you should use a Regenerative Model (PCR-WEA2R) which can safely absorb this energy, or connect an external dummy load to burn off the excess power.

Final Thoughts

An AC Power Supply is the foundation of a reliable test bench. Whether you are ensuring a washing machine survives a lightning storm or verifying that an EV charger works in Antarctica, the ability to control your power environment is the ability to guarantee product quality.
